JCB's Most Popular Excavators And Attachments

JCB's Most Popular Mini Diggers

This section will explain the capabilities of JCB mini diggers as well as the most popular variants. Specifications for the ,18Z-1, 8025 ZTS, 35Z-1, 19C-1, 8026 CTS, 36C-1, 8008 CTS, 8010 CTS models may be seen below.

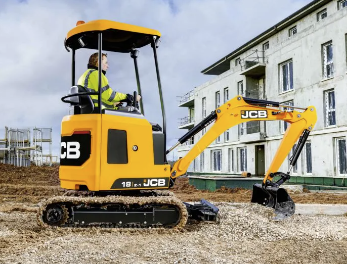

JCB 18Z-1 Mini Digger

The 18Z-1 is a zero tailswing model that makes working in tight spaces like footways and between buildings much easier.

JCB 18Z-1 Mini Digger specifications

JCB 18Z-1 Mini Digger Specifications

Operating Weight Max. Dump Height Max. Dig Depth
1,830kg 2.818m 2.819m

With Long-lasting Components and Easy, Cost-effective Repairs, the 18z-1 Provides Minimum Downtime and Maximum Profits.

✔Innovative assembly techniques and state-of-the-art manufacturing procedures help to achieve the highest construction quality and durability.
✔For maximum longevity, the dig end is buffed and hoses are routed via the boom and dipper.
✔100% steel bodywork that can endure knocks while remaining cost-effective to repair.
✔The first zero tailswing model, which protects the machine and its surroundings from damage.

Most jobs are stressful enough without having to deal with difficult and frequent servicing, difficult-to-reach cleaning, and, of course, uncomfortable working conditions. That's why we've simplified things for you.

✔Cleaning and maintenance are facilitated by the 180° opening service door.
✔Extra security is provided by an easily accessible exterior lockable fuel tank.
✔Right-hand panel featuring simple button functions, as well as indicators and warnings that are easy to understand.
✔Electro proportional control allows for fine attachment control.

The New Generation Minis don't waste time when time is money and getting from one job to the next faster is a huge advantage.

✔Machine transportation is facilitated by ten tie down points and four lifting points.
✔The sloping undercarriage design reduces soil retention and allows for quick cleaning.
✔With no daily greasing and easy access to maintenance and cleaning, turnaround times are reduced.
✔For greatest attachment versatility, use industry standard bucket centres and pin sizes.

Safety becomes increasingly important as working conditions become more restricted. Jcb has always been on the cutting edge of site safety and is always looking for new methods to improve it.

✔The JCB 2GO safety system is a one-of-a-kind feature.
✔The cabs are fully compliant with ROPS and FOPS.
✔For greater on-site safety, excellent all-around visibility is essential.
✔As an added safety measure, when the control pod is elevated, all ✔services are isolated.

The New Generation Minis are all designed with your profits in mind, allowing you to simply get on with your work.

✔Greasing intervals of 500 hours are used to reduce downtime.
✔For work in the tightest of spaces, the minimum front swing radius has been reduced.
✔The 18Z-1's transport weight allows it to be towed to wherever it is required.

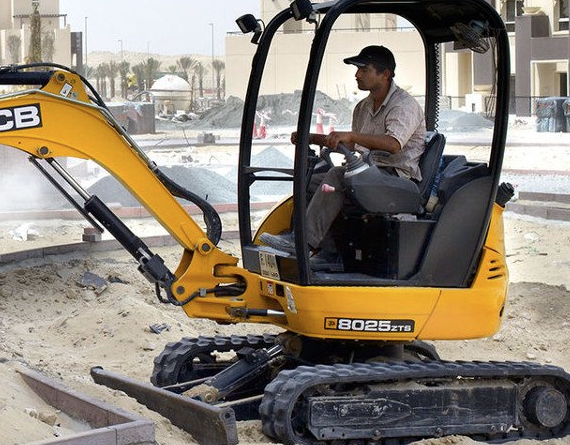

JCB 8025 ZTS Mini Digger

The JCB 8025 ZTS LC mid-sized mini excavator has all of the benefits of a traditional tailswing excavator, plus the extra security of ZTS zero tail swing.

JCB 8025 ZTS Mini Digger specifications

JCB 8025 ZTS Mini Digger Specifications

Operating Weight Max. Dump Height Max. Dig Depth
2806kg 2.832m 3.158m

Performance and Productivity

With its 1.5-liter engine, the 8025 produces impressive tearout forces as well as high levels of tractive effort and tracking speeds.

✔Excellent digging capability with great tractive effort and outstanding tearout forces.
✔ZTS provides more manoeuvrability, especially in tight spaces.
✔The strong 'Maxi'Lift' dozer can lift the machine effortlessly to get more load over height.
✔The 8025 is light enough to be towed behind a vehicle capable of pulling 3500kg.

Quality, dependability, and long-term durability

The 8025 Mini Excavator features true zero tailswing and recognises the demand for ever-smaller machines that deliver speed, power, and productivity.

✔The heavy-duty H-frame undercarriage is built to last and provides confidence-inspiring steadiness.
✔Reliability is built in thanks to the simple design and robust components.
✔A slanted track frame helps to keep dirt out of the way.
✔To provide maximum protection against damage, excavator hoses are run on top of the boom.

Serviceability and safety

Jcb has always been on the cutting edge of site safety and is always looking for new methods to improve it. The 8025 Zts puts the safety of the owner, operator, bystanders, and the machine itself first.

✔The cab complies with all ROPS and TOPS regulations.
✔In hazardous applications, optional boom and cab worklight guards protect vulnerable components.
✔True ZTS design improves safety by lowering the risk of impact in confined places.
✔Intervals of 500 hours between services.

The Optimal Operating Environment

Mini excavator cabs with zero tailswing are notoriously cramped workplaces. Jcb's range, on the other hand, is unique in that it provides a spacious and comfortable operator environment.

✔The 8025 provides a spacious and comfortable working area for the operator.
✔You can achieve the most comfortable temperature with an efficient heating system.
✔Vibration levels should be kept to a minimum.
From the working position, there is excellent visibility.

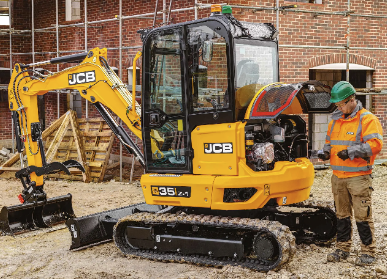

JCB 35Z-1 Mini Digger

The new Stage V 35Z-1 zero tailswing small excavator is now available. Compact excavators of the New Generation 3.5T.

The JCB 35Z-1 is a Stage V machine from the New Generation that does not require electronic control, aftertreatment, or EGR. It features zero tailswing for quick and safe manoeuvrability, especially in tight locations, and is made entirely of steel.

JCB 35Z-1 Mini Digger specifications

JCB 35Z-1 Mini Digger Specifications

Operating Weight Engine Power Bucket Tearout
3556kg 18.4kW 32.4kN

Ultimate Comfort

Our New 3.5 Tonne Excavator Cabs Have Been Upgraded to Provide Easy-to-See Information and Controls, Making Them Great Workplaces.

✔Auxiliary outlet, 12V phone charger, and Bluetooth radio with hands-free.
✔At the start of each day, the machine health-check system ensures that your machine is in perfect operating order.
✔There is completely adjustable suspension seating with independent adjustable positions for all-day operator comfort.

Superior Performance

The New Jcb 35z-1 Is Powered by a Perkins 18.4kw Stage V Engine, and a New Electronically Controlled Pump Is Perfectly Matched to Assist With Even the Most Difficult Tasks.

✔The Hydraulic Attachments' Operation Has Been Improved With New ✔Electro Proportional Joysticks.
✔Choose from a wide range of Jcb attachments, including a brand new ✔Thumb Attachment for the range.
✔Bucket Tearout Forces Up to 32.0kN, Combined With Quick Cycle Times, Provide Unrivaled Productivity

Serviceability

Safety and serviceability features on the new 35z-1 protect machinery, operators, and bystanders alike, while also reducing downtime.

✔Refueling and daily checks are made safe and simple with the wide-opening steel bonnet and external fuel cap.
✔The operator can monitor machine status by performing a machine health check on the first key-on of the day.
✔With the Livelink option, you may control your fleet at the touch of a button.
✔Jcb 2go System is a one-of-a-kind system.

Cost Effective

The New Jcb 35z-1 Was Created to Keep Running Costs to a Minimum and to Provide You With More Than Just Great Performance and Long Service Life.

✔Our Graphite Impregnated Bronze Bushes Have Long Greasing Intervals of 500 Hours, Resulting in Minimal Downtime.
✔Load Detecting Hydraulics Save Energy by Only Using It When It's Needed.
✔Fuel Consumption Is Further Reduced via Programmable Auto-idle and Four Different Engine Modes.
✔With an Easy-to-clean Sloping H-frame Undercarriage, You Can Turn Around Quickly.

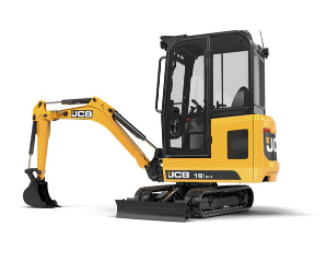

JCB 19C-1 Mini Digger

The 19C-1 has the same small footprint as the rest of the line, but it has a higher tearout and lift capacity for customers that have more demanding needs.

JCB 19C-1 Mini Digger specifications

JCB 19C-1 Mini Digger Specifications

Max Dig Depth Max Dump Height Operating Weight
2.819m 2.818m 1,943kg

Durable

The 19c-1 has been designed and built to withstand the most demanding job sites. With long-lasting components and simple, low-cost repairs, they ensure little downtime and maximum profits.

✔Innovative Assembly Techniques and State-of-the-Art Manufacturing Processes Assist in Achieving Ultimate Build Quality and Durability.
✔Hoses are routed through the boom and dipper for ultimate durability. Bushed Dig End
✔Bodywork made entirely of steel that can withstand knocks while being cost-effective to repair.

Easy To Operate

Most Jobs Are Hard Enough Without the Added Stress of Difficult and Frequent Servicing, Hard to Reach Cleaning and of Course Uncomfortable Operating Conditions. That’s Why We’ve Just Made It Easy.

✔180° Opening Service Door Makes Cleaning and Maintenance Quick and Easy.
✔Easily Accessible External Lockable Fuel Tank Provides Extra Security.
✔Right Hand Panel With Easy Button Functions, Easy to Read Indicators and Warnings.
✔Electro Proportional Control Enables Precise Control of Attachments.

The New Generation Minis don't waste time when time is money and getting from one job to the next faster is a huge advantage.

✔There are ten tie-down points and four lifting points to ensure that the machine is transported quickly.
✔The sloping undercarriage design allows for easy cleaning and less soil retention.
✔With easy access to maintenance and cleaning, there is no need to grease every day, resulting in faster turnaround times.
✔Bucket Centers and Pin Sizes that are Industry Standard for Maximum Attachment Versatility

Safety becomes increasingly important as working conditions become more restricted. Jcb has always been on the cutting edge of site safety and is always looking for new methods to improve it.

✔Jcb 2go Safety System is a one-of-a-kind system.
✔Cabs are fully compliant with Rops and Fops.
✔For greater on-site safety, excellent all-around visibility is essential.
✔The 19c-1 Pc's Lift Overload Warning System ensures maximum stability and safety.

Designed to Simply Get on With Working, the New Generation Minis Are All Designed With Your Profits in Mind.

✔Long Greasing Intervals of 500 Hours for Less Downtime.
✔Reduced Minimum Front Swing Radius for Work in the Tightest of Conditions.
✔Large Glass Area Gives Perfect Visibility Down to the Dozer Blade.
✔2 Speed Heater for Ultimate Operator Comfort.

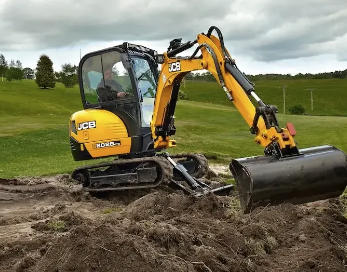

JCB 8026 CTS Mini Digger

The 8026 CTS is JCB's traditional tailswing compact excavator in the 2.5-3.5 tonne class. It's comparable to our 8025 in many aspects, but it's been updated in critical areas.

JCB 8026 CTS Mini Digger specifications

JCB 8026 CTS Mini Digger Specifications

Max Dig Depth MMax. Dig Depth Max. Dump Height
2,867kg 3.05m 3.22m

Productivity And Performance

The Out and Out Class Leader When It Comes to Lifting and Stability. The 8026 Cts Takes Mini Excavator Productivity to New Heights.

✔Impressive Bucket (23kn) and Dipper (17kn) Tearout Performance.
✔82% Better Lift Capacity Over the Tracks Compared to the Zts Model.
✔The Powerful 'maxi'lift' Dozer Can Effortlessly Lift the Machine to Gain Extra Load Over Height.
✔The 8026 Is Light Enough to Be Towed Behind a 3500kg Towing Capacity Vehicle.

Reliable And Excellent Quality

It's trouble-free, rock-solid, and engineered to last. The 8026 may be small, but it packs a punch.

✔In the most demanding applications, high-quality 250mm wide tracks operate admirably.
✔A top-mounted roller in the undercarriage design improves track durability.
✔The ultimate strength is provided by the box section dozer arms.
✔Reliability is built in thanks to the simple design and robust components.

Security And Safety

JCB has always been at the forefront of site safety and provides innovative ways to improve it. the 8026 cts offers safety as first priority, to the owner, operator, bystanders and the machine itself.

✔When the control pod is elevated, all services are separated.
✔In hazardous applications, optional boom and cab worklight guards protect vulnerable components.
✔When the safe work load is exceeded, a hose-burst check valve option sounds an alarm.
✔Service access panels that open wide provide easy access to routine inspections.

Comfortable Cabin Environment

Making life easier means putting the operator first. the 8026 gives precision control in a safe, comfortable environment.

✔In comparison to ZTS models, the cab environment is larger and more spacious, with 50mm more legroom.
✔You can achieve the most comfortable temperature with an efficient heating system.
✔Vibration levels should be kept to a minimum.
✔From the working position, there is excellent visibility.

JCB 36C-1 Mini Digger

The new Stage V 36c-1 zero tailswing compact excavator is now available. Compact excavators of the New Generation 3.5T.

The new 36C-1 is a Stage V machine from the New Generation that does not require electronic control, aftertreatment, or EGR. It has a traditional tailswing for increased stability and lifting capacity, as well as a 100% steel body.

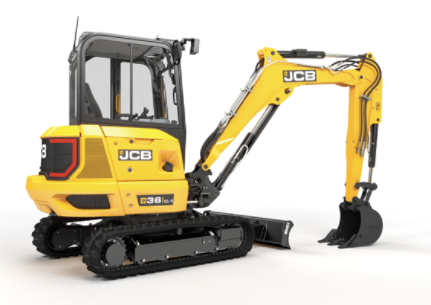

JCB 36C-1 Mini Digger specifications

JCB 36C-1 Mini Digger Specifications

Operating Weight Engine Power Bucket Tearout
3759kg 18.4kW 32.4kN

Durability

Customers demand machines that are of high quality, dependable, and long-lasting. That's why our most recent 3.5-tonne excavators are designed and constructed to last.

✔Our compact excavators have a STEEL body that is sturdy and easy to repair.
✔To extend the life of the kingpost, it has durable re-bushable pivots.
✔When the cab door is folded back, it rests within the counterweight length, protecting it from harm during operation.

Ultimate Comfort

Our new 3.5 tonne excavator cabs have been improved to provide easy-to-read information and simple controls, making them excellent working environments.

✔Auxiliary outlet, 12V phone charger, and Bluetooth radio with hands-free.
✔At the start of each day, the machine health-check system ensures that your machine is in perfect operating order.
✔There is completely adjustable suspension seating with independent adjustable positions for all-day operator comfort.

Superior Performance

The new jcb 36c-1 is driven by a Perkins 18.4kw stage v engine, which is perfectly coupled with a new electronically regulated pump to help with even the most difficult tasks.

✔New electro proportional joysticks have improved the operation of the hydraulic attachments.
✔Choose from a wide range of JCB accessories, including a fresh new thumb attachment for the range.
✔Bucket tearout forces of up to 32.0kN, combined with short cycle times, result in unmatched productivity.

Safety And Serviceability

The new 36c-1 has safety and serviceability features that protect machinery, operators and bystanders alike, as well as minimising downtime.

✔Refueling and daily checks are made safe and simple with the wide-opening steel bonnet and external fuel cap.
✔The operator can monitor machine status by running a machine health-check on the first key-on of the day.
✔The LiveLink option allows you to control your fleet with a single button press.
✔The JCB 2GO system is a one-of-a-kind system.

Affordable

The new jcb 36c-1 is designed to keep operating costs low while providing more than simply exceptional performance and a long service life.

✔Our graphite impregnated bronze bushes have long greasing intervals of 500 hours, resulting in minimal downtime.
✔Load detecting hydraulics save energy by only using it when it's needed.
✔Fuel consumption is further reduced via programmable auto-idle and four different engine modes.
✔With an easy-to-clean sloping H-frame undercarriage, you can turn around quickly.

JCB's Most Popular Micro Digger

This section will explain the capabilities of JCB micro diggers as well as the most popular variants. Specifications for the 8008 CTS and the 8010 CTS, models may be seen below.

JCB 8008 CTS Micro Digger

The 875kg 8008 CTS mini excavator is a little machine that can work well in tight spaces, such as inside buildings and in back gardens.

JCB 8008 CTS Micro Digger specifications

JCB 8008 CTS Micro Excavator Specifications

Max. Dig Depth Max. Dump Height Operating Weight
1.69m 1.98m 950kg

Productivity

Jcb micro excavators are remarkable both for their compact size and the fact that they're extremely powerful.

✔Compact design provides excellent performance in even the tightest of spaces.
✔Larger attachments can be used because to increased digging power and lift capability.
✔Greater stability and class-leading dig depth and reach are provided by an expanding undercarriage.
✔There is plenty of legroom and no confusing change-over controls.

Serviceability

The jcb 8008 cts has been intended to increase productivity while reducing man-hours.

✔Daily service checks are simple and quick to complete.
✔With an 11.5 litre petrol tank, you can get a full day's worth of use without having to stop what you're doing to fill up.
✔The use of a trailer enables for a faster transfer from one location to another.
✔For ease of use, all functions operate independently of one another.

JCB 8010 CTS Micro Digger

The 1028kg 8010 CTS mini excavator is a little machine that can work well in tight spaces, such as inside buildings and in back gardens.

JCB 8010 CTS Micro Digger specifications

JCB 8010 CTS Micro Excavator Specifications

Operating Weight Max. Dig Depth Max. Dump Height
1,110kg 2.15m 1.895m

Productivity

Jcb micro excavators are notable for their small size as well as their high power.

✔Compact design provides excellent performance in even the tightest of spaces.
✔Larger attachments can be used because to increased digging power and lift capability.
✔Greater stability and class-leading dig depth and reach are provided by an expanding undercarriage.
✔There is plenty of legroom and no confusing change-over controls.

Serviceability

The jcb 8010 cts has been intended to increase productivity while reducing man-hours.

✔Daily service checks are simple and quick to complete.
✔With an 11.5 litre petrol tank, you can get a full day's worth of use without having to stop what you're doing to fill up.
✔The use of a trailer enables for a faster transfer from one location to another.
✔For ease of use, all functions operate independently of one another.

JCB's Most Popular Skid Steer Loaders

This section will explain the capabilities of JCB skid steer loaders and the types that are most in demand. The JCB 270, JCB 155, JCB 215, JCB Teleskid 3TS-8W, models have their specifications listed below.

JCB 270 Skid Steer Loaders

Down to the attachment, the JCB 270 large platform machine provides better visibility. This powerful vertical lift skid steer loader with a rated working capacity of 1,235 kg is perfect for demolition, breaker work, and rock saw operations.

JCB 270 Skid Steer Loaders specifications

JCB 270 Skid Steer Loader Specifications

Lift Path Net Engine Power Rated Operating Capacity
Vertical 55kW 1,235kg

Performance And Power

JCB sets new standards for efficiency and productivity in skid steer loaders with plenty of power and varied features.

✔The efficient 44kW JCB Diesel powered by a Kohler T4F engine does not require any post-treatment exhaust. A fast hitch that is industry standard for easy connection to all JCB attachments and other brands.
✔The hydraulic circuit's regular flow rate is 70 lpm. For optimum attachment adaptability, a high-flow variant of up to 115 lpm is available.
✔The Smoothride System (SRS) option from JCB enables for better load retention and quicker loading cycles.

Durability

JCB is known for its sturdy design, and its skid steers are built to withstand the demands of any application or situation.

✔A fully welded chassis ensures a strong structure for optimal strength and weight savings.
✔The PowerboomTM ensures safe internal hydraulic hose routing for maximum impact protection.
✔On difficult terrain, a strong undercarriage ensures steady performance.
✔JCB skid steers use the industry's largest fast hitch pivot pins for more breakout force.

Superior Safety

Operators no longer need to climb over big attachments or beneath an unsupported boom since there is a wide-opening side door for secure entry and egress.

✔Easy and safe access and exit are made possible by a wide-opening side door.
✔Visibility around the machine is 60% better than on traditional twin-arm machines.
✔Due to the good visibility, tasks such as loading a truck or changing attachments are made easier.

Simple Service

Low-maintenance and easy-to-service JCB skid steer loaders are cost-effective, efficient, and productive.

✔All daily checks can be carried out from the ground.
✔A big, recessed rear service door makes it simple to access pre-filters, oil, and air filters.
✔JCB's tilting cabs are simple to operate and open in a matter of minutes.
✔Hydraulic fittings with an O-ring face seal decrease leaks and maintenance downtime.

Comfort And Usability

JCB skid steer loaders provide unrivalled comfort for optimal productivity, with convenient side-door entrance, the largest cabins on the market, electric controls, and adjustable joystick controls.

JCB cabs are 46 percent larger than the rivals on compact platform machines.
✔With JCB's myCHOICE control software, operators can customise the sensitivity of joystick movement to fit their specific needs.
✔ISO or H-pattern controls are offered, depending on the preferences of the operator.
✔The radio has an AUX input for connecting mobile phones and other devices.

JCB 155 Radial Lift Skid Steer Loader

Flexible, multi-purpose and highly productive.

The JCB 155 radial lift skid steer loader's tiny platform and 703kg rated operational capacity make it perfect for digging and moving materials at ground level, as well as mid-range height operations like dumping over walls.

JCB 155 Radial Lift Skid Steer Loader specifications

JCB 155 Radial Lift Skid Steer Loader Specifications

Radial 42kW Rated Operating Capacity
Vertical 55kW 703kg

Performance And Power

JCB sets new standards for efficiency and productivity in skid steer loaders with plenty of power and varied features.

✔The efficient 44kW JCB Diesel powered by a Kohler T4F engine does not require any post-treatment exhaust. A fast hitch that is industry standard for easy connection to all JCB attachments and other brands.
✔The hydraulic circuit's regular flow rate is 70 lpm. For optimum attachment adaptability, a high-flow variant of up to 115 lpm is available.
✔The Smoothride System (SRS) option from JCB enables for better load retention and quicker loading cycles.

Durability

JCB is known for its sturdy design, and its skid steers are built to withstand the demands of any application or situation.

✔A fully welded chassis ensures a strong structure for optimal strength and weight savings. - The PowerboomTM ensures safe internal hydraulic hose routing for maximum impact protection.
✔On difficult terrain, a strong undercarriage ensures steady performance.
✔JCB skid steers use the industry's largest fast hitch pivot pins for more breakout force.

Ultra Safe

Operators no longer need to climb over big attachments or beneath an unsupported boom since there is a wide-opening side door for secure entry and egress.

✔Easy and safe access and exit are made possible by a wide-opening side door.
✔Visibility around the machine is 60% better than on traditional twin-arm machines.
✔Due to the good visibility, tasks such as loading a truck or changing attachments are made easier.

Simple Servicing Needs

Low-maintenance and simple-to-service JCB skid steer loaders are cost-effective, efficient, and productive.

✔All daily checks can be completed from the ground.
✔A big, recessed rear service door makes pre-filters, oil, and air filters easy to reach.
✔The tilting cabs from JCB are simple to use and open in a matter of minutes.
✔Leaks and maintenance downtime are reduced with O-ring face seal hydraulic fittings.

Control And Comfort

JCB skid steer loaders provide unrivalled comfort for optimal productivity, with convenient side-door entrance, the largest cabins on the market, electric controls, and adjustable joystick controls.

JCB cabs are 46 percent larger than the rivals on compact platform machines.
✔With JCB's myCHOICE control software, operators can customise the sensitivity of joystick movement to fit their specific needs.
✔ISO or H-pattern controls are offered, depending on the preferences of the operator.
✔The radio has an AUX input for connecting mobile phones and other devices.

JCB 215 Skid Steer Loader

The JCB 215 is the most powerful vertical lift machine in our small platform category, with a rated working capacity of 958kg. Because it is compact but powerful, it is extremely productive, and it now has the ability to operate more attachments than previously.

JCB 215 Skid Steer Loader specifications

JCB 215 Skid Steer Loader Specifications

Lift Path Net Engine Power Rated Operating Capacity
Vertical 55kW 958kg

Performance And Power

JCB sets new standards for efficiency and productivity in skid steer loaders with plenty of power and varied features.

✔JCB's cooling system takes cool, clean air from above and drives heated air out the sides and back, away from the operator, unlike traditional skid steer cooling systems.
✔All JCB machines come fitted with an industry-standard fast hitch for simple coupling to all JCB attachments as well as other brands.
✔On JCB compact platform machines, the normal hydraulic circuit is 70 lpm. For optimum attachment adaptability, a high-flow variant of up to 115 lpm is available.
✔On all JCB models, an optional parallel lift makes it easier to position loads with forks or attachments.
✔The Smoothride System (SRS) option from JCB allows the boom and load to move independently from the chassis, improving load retention, operator comfort, and loading cycle speed.

Durability And Strength

JCB is known for its sturdy design, and its skid steers are built to withstand the demands of any application or situation.

✔A fully welded chassis ensures a strong structure for optimal strength and weight savings.
✔The PowerboomTM ensures safe internal hydraulic hose routing for maximum impact protection.
✔On difficult terrain, a strong undercarriage ensures steady performance.
✔JCB skid steers use the industry's largest fast hitch pivot pins for more breakout force.

Superior Safety

Operators no longer need to climb over big attachments or beneath an unsupported boom since there is a wide-opening side door for secure entry and egress.

✔Easy and safe access and exit are made possible by a wide-opening side door.
✔Visibility around the machine is 60% better than on traditional twin-arm machines.
✔Due to the good visibility, tasks such as loading a truck or changing attachments are made easier.

Simple Servicing

Operators no longer need to climb over big attachments or beneath an unsupported boom since there is a wide-opening side door for secure entry and egress.

✔Easy and safe access and exit are made possible by a wide-opening side door.
✔Visibility around the machine is 60% better than on traditional twin-arm machines.
✔Due to the good visibility, tasks such as loading a truck or changing attachments are made easier.

JCB Teleskid 3TS-8W Skid Steer Loader

JCB Teleskid 3TS-8W can reach higher, further, and deeper than any other skid steer on the market, allowing you to access places you never imagined conceivable.

JCB Teleskid 3TS-8W Skid Steer Loader specifications

JCB Teleskid 3TS-8W Skid Steer Loader Specifications

Lift Path Net Engine Power Rated Operating Capacity
Vertical/Radial 55kW 611kg

Perfect For

With Teleskid's 3.1 metre dump height, you can load a lorry without using a ramp.

✔With a height of almost 13 feet, you can easily and rapidly load trucks or feeders without the use of a ramp.
✔With a lift capacity of 3695Ib (3TS-8T), the JCB Teleskid can handle even the biggest loads.
✔The standard 2-speed transmission aids in reducing travel and cycle times.

Set a pallet on the second floor, then use Teleskid's extending boom to grade a site.

✔To maximise strength and save weight, the boom is mounted on a single-piece completely welded chassis.
✔The single-piece u-pressed construction of the high-strength steel boom reduces joints and stress spots.
✔The Teleskid mono-boom design from JCB has a 270o field of vision. The use of laminate side glass rather than mesh adds to improved all-around visibility.

Teleskid's 2.2 metre forward reach allows you to reach across a retaining wall.

✔With a vertical reach of over four metres and a forward reach of more than two metres, it can go places and accomplish things that others can't.
✔You can rip out trees and roots by reaching about 1 metre below the ground.
✔When the boom is fully extended, a conventional hydraulic flow rate of 90 l/pm allows you to operate attachments, while 125lpm high flow couplers allow you to safely run high flow attachments when the boom is fully retracted.

Teleskid's 1 metre reach below the wheels allows you to dig deeper into the earth.

✔Load and unload a normal 8-foot trailer from one side, resulting in a faster turnaround.
✔A standard electric fast hitch reduces material accumulation and improves load visibility.
✔A sturdy undercarriage with triple flanged cast steel rollers ensures exceptional track retention.

Teleskid's 2.2 metre forward reach allows you to reach over a cargo without colliding with it.

✔The first vertical and radial lift skid steer and compact track loader.

✔The JCB Teleskid can be readily carried between sites on a trailer, with an SAE operating weight of 12615lbs for the compact track loader and 9859lbs for the skid steer loader.

✔The compact track loader has a load capacity of 1600 pounds at full extension, while the skid steer loader has a load capacity of 1300 pounds, allowing heavy goods to be placed without hurting the ground.

JCB's Most Popular Tracked Diggers

This section will explain the capabilities of JCB tracked diggers and the most popular versions. Specifications for the 131X, 140X ,150X, and JS190 models are listed below.

JCB 131X Tracked Diggers

Our vision from the start was to design and engineer our most advanced tracked excavator range ever.

The 13-tonne 131X complements its bigger sibling, the 20-tonne X Series. Our engineering teams have focused on every last aspect of this new world-class excavator, using the same high-quality materials and tried-and-true components as before. As a result, the X Series has gained yet another serious machine.

JCB 131X Tracked Diggers specifications

131X Tracked Excavator Specifications

Max. Engine Power Max. Bucket Capacity Max. Operating Weight
55kW 0.89m³ 16,170kg

Ultra Strength

It's taken 4 years of development and thousands of hours of extreme endurance testing to build a machine that not only looks strong, it is strong.

✔Testing on a machine shaker rig to simulate 15,000 hours of tracking and vibration.
✔A total of 30,000 window and door operating tests have been performed to ensure component quality.
✔Testing in regulated situations and locations around the world in hot and cold climates (55°C to -30°C).
✔The 220X Dieselmax engine has completed 110,000 hours of testing in 70 different machines in the worst conditions.

Comfort

There's enough to satisfy even the most demanding operator, with ride comfort and low noise levels that rival the best in the industry.

✔The industry-leading Grammer seat is featured in the JCB CommandPlus cab.
✔The use of double-cushioned viscous mounts helps to achieve a low in-cab noise level of 67dB. (A).
✔With 11 vents, the new strong HVAC system ensures optimal performance in both hot and cold settings. Climate control is included as standard equipment.
✔Roof, front, rear, and side window shades are included as standard, ensuring that the whole cab is covered.

Superior Performance

We've spent years researching and developing a machine that will perform in the most harsh environments, listening to thousands of clients like you.

✔Hydraulic pipes and hoses with large diameters for greater production and efficiency.
✔A unique hydraulic regeneration mechanism that recycles oil between cylinders.
✔Auto-stop and auto-idle functions can help you save up to 5% on your gas bill.
✔Because the 131X Stage V uses a DOC and DPF for exhaust following treatment, there is no need for DEF, resulting in cheaper operating expenses.

Control

The finest blend of controllability and efficiency was achieved after four years of hydraulic development combined with reliable Japanese components.

✔The joystick can be used to modify the tracking speed while on the go.
✔Adjustable proportional controls allow the user to choose their preferred speed and attachment control.
✔Slew drive increases controllability and refinement by delivering high torque during acceleration and braking.

JCB 140X Tracked Diggers

From the beginning, our goal was to develop and engineer the most advanced tracked excavator range we'd ever seen.

The 14-tonne 140X complements its bigger sibling, the 20-tonne X Series. Our engineering teams have focused on every last aspect of this new world-class excavator, using the same high-quality materials and tried-and-true components as before.

JCB 140X Tracked Diggers specifications

140X Tracked Excavator Specifications

Max. Engine Power Max. Operating Weight Max. Bucket Capacity
81kW 16,170kg 10.89m³

Ultra Strength

It took four years to design and tens of thousands of hours of rigorous testing. To create a machine that is not only visually appealing but also functionally sound.

✔Testing on a machine shaker rig to simulate 15,000 hours of tracking and vibration.
✔A total of 30,000 window and door operating tests have been performed to ensure component quality.
✔Testing in regulated situations and locations around the world in hot and cold climates (55°C to -30°C).
✔The 140X EcoDieselmax engine has been tested in 70 different machines in the harshest settings for 110,000 hours.

Comfort

✔The JCB CommandPlus cab comes standard with an industry-leading Grammer seat.
✔The use of double-cushioned viscous mounts helps to achieve a low in-cab noise level of 67dB. (A).
✔With 11 vents, the new strong HVAC system ensures optimal performance in both hot and cold settings.

Superior Performance

We've spent years researching and developing a machine that will perform in the most harsh environments, listening to thousands of clients like you.

✔Hydraulic pipes and hoses with large diameters for greater production and efficiency.
✔A unique hydraulic regeneration mechanism that recycles oil between cylinders.
✔Auto-stop and auto-idle functions can help you save up to 5% on your gas bill.
✔The 11 percent increase in bucket rip out is due to the larger bucket cylinder.

Control

The finest blend of controllability and efficiency was achieved after four years of hydraulic development combined with reliable Japanese components.

✔The finest blend of controllability and efficiency was achieved after four years of hydraulic development combined with reliable Japanese components.
✔The operator can choose their preferred speed and attachment control with custom proportional controls.
✔Japanese hydraulics are known for their precision and efficiency.
✔Depending on personal choice, the operator can choose between Auto-Stop and Auto-Idle.

JCB 150X Tracked Diggers

From the beginning, our goal was to develop and engineer the most advanced tracked excavator range we'd ever seen.

The 15-tonne 150X complements its bigger sibling, the 20-tonne X Series. Our engineering teams have focused on every last aspect of this new world-class excavator, using the same high-quality materials and tried-and-true components as before.

JCB 150X Tracked Diggers specifications

150X Tracked Excavator Specifications

Max. Engine Power Max. Bucket Capacity Max. Operating Weight
81kW 0.89m³ 18,126kg

Ultra Strength

It took four years to design and tens of thousands of hours of rigorous testing. To create a machine that is not only visually appealing but also functionally sound.

✔Testing on a machine shaker rig to simulate 15,000 hours of tracking and vibration.
✔A total of 30,000 window and door operating tests have been performed to ensure component quality.
✔Testing in regulated situations and locations around the world in hot and cold climates (55°C to -30°C).
✔The 150X EcoDieselmax engine has been tested in 70 different machines in the harshest settings for 110,000 hours.

Comfort

There's enough to satisfy even the most demanding operator, with ride comfort and low noise levels that rival the best in the industry.

✔The JCB CommandPlus cab comes standard with an industry-leading Grammer seat.
✔The use of double-cushioned viscous mounts helps to achieve a low in-cab noise level of 67dB. (A).
✔With 11 vents, the new strong HVAC system ensures optimal performance in both hot and cold settings.

Performance

We've spent years researching and developing a machine that will perform in the most harsh environments, listening to thousands of clients like you.

✔Hydraulic pipes and hoses with large diameters for greater production and efficiency.
✔A unique hydraulic regeneration mechanism that recycles oil between cylinders.
✔Auto-stop and auto-idle functions can help you save up to 5% on your gas bill.
✔The 11 percent increase in bucket rip out is due to the larger bucket cylinder.

Control

The finest blend of controllability and efficiency was achieved after four years of hydraulic development combined with reliable Japanese components.

✔The operator can choose their preferred speed and attachment control with custom proportional controls. Control has been proven to be precise and efficient.
✔Japanese hydraulics are known for their precision and efficiency. Depending on their preferences, the operator can choose between Auto Stop and Auto Idle.
✔In difficult conditions, the power boost button raises pressure by 9% for up to 9 seconds, providing more tear out.

JCB JS190 Tracked Diggers

Before you get an excavator, perform sure it'll be tough enough to handle any job you throw at it. Strength and durability come as standard with a js190, which is fortunate.

For long-term durability, the reinforced boom and dipper are built of high-tensile steel with single-piece wrapper plates and internal baffle plates. A revolving frame with a closed box section boosts strength while minimising stress. This also implies it is extremely impact resistant.

JCB JS190 Tracked Diggers specifications

JCB JS190 Tracked Digger Excavator

Max. Engine Power Max. Operating Weight Max. Bucket Capacity
93kW 21,225kg 0.85m³

Productivity

We've made sure the js190's componentry works in perfect harmony. Making sure to save you money as well as time.

✔The quickhitch technology makes changing attachments quick and simple.
✔JCB offers a wide range of auxiliary pipework choices, including hammer, auxiliary, and low flow, for maximum versatility.
✔The JS190 is exceptionally productive in all applications, with a large 119kN kgf bucket tearout and quick cycle times.

Comfort

The js190 is designed around the operator. Great comfort and ease of use equals great productivity.

✔The 7-inch colour multi-function display is simple to see in all lighting circumstances and displays real-time operational data.
✔Excellent rearward visibility is provided by a unique low-level hood.
✔The Advanced Tool Select function allows you to easily set up auxiliary hydraulic circuits to fit an attachment's flow and pressure needs.

Less Servicing

The js190 was created to be low-maintenance and easy-to-service. Making it more cost-effective, efficient, and productive.

✔The air filter on a JS190 is easily accessible, and cleaning is made easier by the double-element architecture.
✔Because the engine radiator, hydraulic cooler, and intercooler are placed side by side, they may be serviced and cleaned separately.
✔The EcoMAX engine does not require expensive heat-resistant lubricating oils because it does not require exhaust after treatment.

Safe Choice

Because on-site safety is so important, we built the js190 with as many cutting-edge precautions as possible.

✔For further peace of mind, the JS190's cab can be equipped with an inbuilt Rollover Protection Structure (ROPS).
✔The Safety Level Lock from JCB completely separates hydraulic functions to prevent unintentional movements.
✔A JCB JS190 can only be started in a safe locked position using two different inputs thanks to our 2GO system.

Ideal Digger Hire Essex

Tel:01376319184

Connect
