Caterpillar's Most Popular Excavators And Attachments

Caterpillar's Most Popular Mini Diggers

This section will explain the capabilities of Caterpillars mini diggers and the types that are most in demand. The 300.9D, 301.6, 301.7 CR, 302.7D models have their specifications listed below.

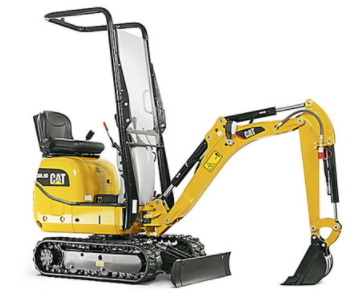

Caterpillar 300.9D
Mini Digger

Compact Size for Small Spaces

The Cat 300.9D Mini Excavator combines power and performance in a small package to help you get the job done in confined spaces. Its capacity to fit through a tight doorway makes it ideal for demolition operations indoors.

Caterpillar 300.9D Mini Digger specifications

Dimensions

The Cat 300.9D can easily drive through short corridors and doorways, with an overall width of only 730 mm (2 ft 5 in). With a weight of under 1000 kg (2,205 lb), both indoor and outdoor jobs are now conceivable, as is trailer transportation between locations.

Entending Undercarriage And Blade

The equipment may be modified for good working stability and best performance thanks to its expanding undercarriage and fold out dozer blade. The machine can pass through tiny openings thanks to easy retraction, which may be regulated from the operator's seat.

Foldable Frame

A protective ROPS safety frame structure positioned on the machine's front enables for the installation of a guard for added operator protection when using the hammer. For easy machine transportation and storage, the structure folds down in a matter of seconds.

Simple Control

The operator area is large and well-designed to promote comfort and simplicity of use. Easy-to-use controls enable smooth, precise operation, allowing users of all skill levels to be productive with little experience.

Easy To Service

With a simple to open steel engine cover and all maintenance and greasing points conveniently accessible, service and maintenance time is reduced to a bare minimum.

Versatility

To take advantage of the machine's capabilities, a variety of tools are offered. To improve performance and give outstanding value through high productivity and extended life, all tools are matched to the machine.

Net Power 9.6 kW
Operating Weight 935 kg
Maximum Digging Depth 1731 mm

Caterpillar 301.6
Mini Digger

The Cat 301.6 Mini Excavator combines power and performance in a small package to help you complete a variety of tasks.

Caterpillar 301.6 Mini Digger specifications

Comfort

A sealed and pressurised cab with air conditioning, adjustable wrist rests, and a suspension seat option keeps you comfortable throughout the day.

Easy To Operate

The controls are simple to operate, and the machine information is shown on an intuitive Next Generation LCD monitor.

Stick Steer Travel Mode

With the Cat Stick Steer option, getting around the job site is considerably easier. With the stroke of a button, you can easily swap from classic travel controls like levers and pedals to joystick controls. It's up to you to reap the benefits of less effort and better control!

High Performance For Compact Design

Lifting and digging performance is important for getting the work done quickly. The retractable undercarriage allows you to work in even the most confined spaces. Clean-up is a breeze with the dig-to-blade and dozer float functions.

Safety

Our first aim is to keep you secure. The Cat mini excavator is built to keep you safe while working. We've included courtesy work lights and a bright retractable seat belt among the machine's safety features.

Simple And Fast Servicing

On the Cat small excavator, maintenance is simple and quick. Routine checkpoints are easily accessible from the ground level via side entrances. When needed, the tilt-up cab allows you to reach additional servicing locations.

Lower Operating Cost

The Cat compact excavator was developed with low operating expenses in mind, with features like auto idle, auto engine shutdown, and economical hydraulics with a variable displacement pump.

Net Power 15.7 kW
Operating Weight 1958 kg
Dig Depth 2540 mm

Caterpillar 301.7 CR
Mini Digger

The Cat 301.7 CR Mini Excavator combines power and performance in a small package to help you complete a variety of tasks.

Caterpillar 301.7 CR Mini Digger specifications

Comfort

Wrist rests that adjust and a suspension seat option help you work comfortably all day.

Easy To Operate

The controls are simple to operate, and the machine information is shown on an intuitive Next Generation LCD monitor.

Stick Steer Travel Mode

With the Cat Stick Steer option, getting around the job site is considerably easier. With the stroke of a button, you can easily swap from classic travel controls like levers and pedals to joystick controls. It's up to you to reap the benefits of less effort and better control!

High Performance For Compact Design

Lifting and digging performance is important for getting the work done quickly. You can access and work in the tightest spaces thanks to the tiny radius design and retractable undercarriage. Clean-up is a breeze with the dig-to-blade and dozer float functions.

Safety

Our first aim is to keep you secure. The Cat mini excavator is built to keep you safe while working. We've included courtesy work lights and a bright retractable seat belt among the machine's safety features.

Simple And Fast Servicing

On the Cat small excavator, maintenance is simple and quick. Routine checkpoints are easily accessible from the ground level via side entrances. When needed, the innovative tilt up canopy allows you to reach additional servicing areas.

Lower Operating Cost

The Cat compact excavator was developed with low operating expenses in mind, with features like auto idle, auto engine shutdown, and economical hydraulics with a variable displacement pump.

Net Power 15.7 kW
Operating Weight 1915 kg
Dig Depth 2540 mm

Caterpillar 302.7D CR Mini Digger

Caterpillar 302.7D CR Mini Digger specifications

Compact Radius

The 302.7D CR is a true zero tail swing machine when configured without the additional counterweight, with the upper body keeping within the width of the undercarriage throughout rotation. This allows the operator to work in restricted spaces and focus on the task at hand without having to worry about the machine's back.

Transport Weight

The 302.7D CR is meant to have a transit weight of less than 2.7 tonnes (6,000 lb) when equipped with a cab. This enables the use of a conventional passenger car to transport a trailer at a lesser cost (subject to national restrictions).

Additional Counterweight

With only a little increase in the overhang, an optional additional weight increases the machine's lifting capability. With only a little increase in the overhang, an optional supplementary counterweight increases the machine's lifting capacity. (In North America and Australia, this counterbalance is included as standard.)

Auxiliary Hydraulics As Standard Fit

The machine is'ready to use.' Standard features include hammer and two-way lines with quick disconnect connections. To limit hose lengths and potential damage, connections are near to the tool. Additional line variations are available to expand the machine's functionality even more. By running cylinder hoses through the boom, stick and bucket cylinder hoses are protected.

Complete Pilot Control

Provides outstanding machine control and 'as new' performance for the life of the machine, eliminating the need for linkage and cable maintenance.

Automatic Swing Lock

When the control console is lifted or the engine is stopped, the Cat automatic swing lock locks the machine's upper body in place, ensuring safe transportation.

Dozer Float

With the dozer float function active, ground levelling and finishing applications are faster and easier, making site clean-up considerably more efficient.

Comfort

The Cat 302.7D CR provides a big, comfortable workspace for the operator. Operator fatigue is reduced and productivity is increased thanks to the ergonomic control layout, travel pedals, and adjustable wrist rests.

Simultaneous Operation

For faster machine placement and object handling, both the upper body swing and the boom offset can be adjusted at the same time.

Ajustable Flow Control

For even more tool control, machines with proportional auxiliary hydraulics have adjustable hydraulic flow control. Especially handy with angling buckets and other similar instruments.

Split Front Window

The bottom piece of the front glass slides into the frame of the higher section. Using a gas-assisted mechanism, both portions are then elevated and stowed in the roof. This allows the operator to easily store the front glass in the desired position for visibility and ventilation.

Pivot Bushes

All pivot points on the front linkage, including the swing casting, boom, stick, and bucket, are supplied with steel bushings. Designed to last a long time and be easy to replace.

Maintenance Access

Hydraulic system components are easily accessible thanks to removable coverings in the cab and at the rear of the machine.

Side Mounted Engine

The big side cover provides easy access to all daily servicing points. In addition, the engine's location limits heat and noise transfer into the operator station (cab).

Net Power 15.2 kW
Operating Weight 2830 kg
Dig Depth 2544/2744 mm (8 ft 4 in/9 ft 0 in)

Caterpillar's Most Popular Medium Digger

This section will explain the capabilities of Caterpillar Medium diggers as well as the most popular variants. Specifications for the Caterpillar 320 GC, Caterpillar 335, Caterpillar 326 and Caterpillar 323 models may be seen below.

Caterpillar 320 GC Medium Digger

Comfortable And Productive

The Cat 320 GC excavator brings you a robust, low-cost-per-hour excavator with easy-to-use technological features, a new comfortable cab, decreased fuel consumption by up to 20%, and extended maintenance intervals that lower maintenance costs by up to 25%.

Caterpillar 320 GC Medium Digger specifications

Performance With Less Fuel

In similar settings, the excavator burns up to 20% less fuel than the 320F.

✔With power modes, you may tailor the excavator to the job at hand; Smart mode will automatically adapt engine and hydraulic power to digging circumstances.
✔The sophisticated hydraulic system offers the best blend of power and efficiency, as well as the control you need for precision digging.
✔For fast light-to-medium load cycle times, valve priority directs hydraulic pressure and flow where you want it.
✔With an aftertreatment system that requires no user input or downtime, the engine meets US EPA Tier 4 Final and EU Stage IV pollution requirements.
✔To do more work with a variety of Cat attachments, add supplementary hydraulics.
✔Product LinkTM is included as standard, allowing you to monitor machine health, location, hours, and fuel consumption remotely via the VisionLink® internet interface at any time.

Low Maintenence Fees

Maintenance costs are expected to be up to 25% lower than the 320E. (savings calculated over 12,000 machine hours).

✔All daily maintenance should be done on the ground level.
✔Fill and check engine oil on top of the machine with a conveniently situated second dipstick; check engine oil level quickly and safely with the new ground level engine oil dipstick.
✔The in-cab display allows you to keep track of your excavator's filter life and maintenance intervals.
✔The Cat Clean Emissions Module does not require any maintenance.
✔By using Cat original oil and filters and doing standard SOS monitoring, you may double your existing service interval to 1,000 hours, allowing you to do more work.
✔The new hydraulic oil filter features enhanced filtering, anti-drain valves to keep oil clean when the filter is removed, and a 3,000-hour replacement period, which is 50% longer than prior filter designs.
✔The new high-efficiency electric cooling fans only run when they're needed and then reverse to keep the cores clean.
✔SOS ports make maintenance easier and allow for quick and easy sample extraction for fluid analysis.

Reliability

✔Without de-rating, work up to 3000 m (9,840 ft) above sea level.
✔The standard high-ambient temperature capability is 52 degrees Celsius (125 degrees Fahrenheit), with a cold start capability of –32 degrees Celsius (–25 degrees Fahrenheit).
✔In frigid weather, auto warm up helps extend the life of components by speeding up the warming of hydraulic oil.
✔The engine is protected from contaminated diesel fuel by three stages of fuel filtration.
✔Grease between track pins and bushings decreases travel noise and keeps debris out of the undercarriage, extending its life.
✔When travelling and working on slopes, the centre track guiding guard keeps the excavator track aligned.
✔The slanted track frame helps to lessen the danger of track damage by preventing mud and debris accumulation.

Safety

✔You can reach 100% of the daily maintenance points from ground level, eliminating the need to climb to the top of the excavator.
✔With Operator ID, you can keep your excavator safe. To use the pushbutton starting option, enter your PIN code on the monitor.
✔The conventional ROPS cab complies with ISO 12117-2:2008.
✔Smaller cab posts and larger windows provide excellent view into the trench, in each swing direction, and behind you.
✔A rearview camera comes standard, and a right-side view camera is available as an option.
✔The new right-hand service platform design allows for easy, safe, and rapid access to the higher service platform, with anti-skid punch plate on the service platformsteps to prevent slippage.
✔The handrails meet the criteria of ISO 2867:2011.
✔The bottom frame complies with the lifting and tie-down criteria of ISO 15818:2017.
✔Optional inspection lighting makes service work easier and safer. Lights illuminate the engine, pump, battery, and radiator compartments at the flip of a switch to improve sight.

Simple

✔Use a push button, a Bluetooth key fob, or the unique Operator ID feature to start the engine.
✔Operator ID will remember the settings for the climate control fan and radio as well as each joystick button, including response and pattern.
✔Use the jog dial control to rapidly navigate using the standard high-resolution 203 mm (8 in) touchscreen monitor.
✔Avoid overworking your hammer. To reduce wear and tear on the attachment and excavator, the auto hammer stop alerts you after 15 seconds of continuous fire and then switches it off automatically after 30 seconds.
✔Do you have any questions about how a function operates or how to keep the excavator in good working order? Keep the operator's manual in your touchscreen monitor at all times.
✔The Cat PL161 Attachment Locator is a Bluetooth device that helps you quickly locate your attachments and other gear. Your phone's Cat App will immediately track down the gadget.
✔With Cat Stick Steer, manoeuvring the excavator is a breeze. Rather than using both hands or feet on levers or pedals, simply press a button and turn with one hand.

Designed For The User

✔The spacious seat in the Comfort cab adjusts to fit operators of all sizes.
✔With easy-to-reach controls all in front of you, you can easily manage the excavator.
✔The included automatic climate control keeps you comfortable throughout your shift.
✔Vibration in the cab is reduced by up to 50% compared to prior excavator models thanks to advanced viscous mounts.
✔Plenty of in-cab storage is available beneath and behind the seat, overhead, and in the consoles. There's also a cup holder, document holder, bottle holder, and coat hook.
✔Connect to personal devices via the USB ports and Bluetooth® technology on the standard radio.

Net Power - ISO 9249 109 kW
Operating Weight 21900 kg
Maximum Digging Depth 6720 mm

Caterpillar 335 Medium Digger

The Cat 335 Excavator combines outstanding performance with easy-to-use innovations to help operators save up to 45 percent of their time. When you add in a compact radius design, a new cab, longer maintenance intervals, and a more efficient power system, you have a low cost-per-unit manufacturing excavator.

Caterpillar 335 Medium Digger specifications

Performance With Productivity

✔Larger stick and bucket cylinders, as well as more hydraulic power, can boost productivity by up to 20%. In comparison to the 335F, this represents a 20% boost in fuel efficiency.
✔Hydraulic power has been raised by 20% for enhanced production.
✔Larger diameter cylinders result in a 15% increase in bucket and stick force.
✔Working in tight locations is made easier with a compact radius.
✔Working on slopes is made easier with a 5% increase in swing torque.
✔Standard Cat innovations that reduce operator fatigue and operating costs, including as fuel consumption and regular maintenance, can increase operating efficiency by up to 45 percent.
✔The C7.1 engine complies with the most recent pollution regulations. There is no need for maintenance or downtime with the aftertreatment system.
✔The sophisticated hydraulic system offers the best blend of power and efficiency, as well as the control you need for precision digging.
✔With power modes, you may tailor the excavator to the job at hand; Smart mode will automatically adapt engine and hydraulic power to digging circumstances. Smart mode can save you 10% on average in fuel usage while having no effect on productivity.
✔Bucket tips from AdvansysTM improve penetration and cycle times. Tip changes can be completed rapidly using a lug wrench rather than a hammer or special tool, resulting in increased safety and uptime.
✔You can employ a wide range of Cat attachments with the help of auxiliary hydraulic solutions.
✔Operators may focus on stick and bucket operations with the optional SmartBoomTM, which allows the boom to freely travel up and down without consuming any pump flow, saving operator stress and fuel usage.
✔There are now two blade widths available: 3.6 m (11'8") for up to 850 mm (33") shoes and 3.45 m (11'3") for 600 mm (24") shoes.
✔Don't let the cold get in the way of your work. The excavator's standard high-ambient temperature capability is 52°C (125.6°F) without de-rate, and it can start cold at 18°C (0°F). A cold start package for -32°C (-25°F) is provided as an option.

Complete The Task With Advanced Technology

✔Standard ease-of-use features like Cat GRADE with 2D, Cat Payload, and Cat 2D E-Fence help you get more done faster.
✔With single-lever digging, Standard Grade Assist helps you stay on grade – simply and efficiently.
✔In slope, levelling, fine grading, and trenching applications, choose your desired bucket angle and let Bucket Assist maintain it automatically.
✔Swing Assist helps you save time and money by automatically stopping the excavator swing at operator-defined set points in truck loading and trenching applications.
✔With on-the-go weighing and real-time payload predictions without swinging, the standard Cat Payload on-board weighing system allows you to reach precise load targets and boost loading efficiency.
✔Payload can be used in conjunction with VisionLink® to help you manage your production targets from afar.
✔Upgrade to Cat GRADE with Advanced 2D for a second high-resolution 254 mm (10 in.) touchscreen monitor to easily generate and adjust grade designs.
✔Upgrade to Cat GRADE with 3D if you want to employ 3D designs and GNSS technology to help you get to your desired grade faster and more accurately. The Cat GRADE with 3D option's optional GNSS antenna will be flush placed on the counterweight, allowing for a more protected construction while yet providing great visibility to the sky and satellites.
✔Trimble, Topcon, and Leica radios and base stations are all compatible with Cat Grade systems.
✔Have you already made an investment in a high-quality infrastructure? Trimble, Topcon, and Leica grading systems can all be installed on the machine.


Comfort

✔You can choose between Deluxe and Premium cabs, both of which have automatic climate control.
✔The Deluxe seat is air-adjustable and heated. The heated and cooled Premium seat adjusts automatically.
✔The Deluxe and Premium cabs have a tip-up console that increases ingress/egress by about 45 percent.
✔With easy-to-reach controls all in front of you, you can easily manage the excavator.
✔Plenty of in-cab storage is available beneath and behind the seat, as well as in the consoles. There's also a cup holder, document holder, bottle holder, and coat hook.
✔Connect personal gadgets and make hands-free calls using the USB ports and Bluetooth technologies on the standard radio.

Simple Operation

✔Start the engine with a push button or the unique Operator ID feature using a Bluetooth key fob (optional).
✔Operator ID allows you to programme your power mode and joystick preferences, and the excavator will remember them each time you go to work.
✔Use the jog dial control to navigate rapidly on the basic high-resolution 203 mm (8 in.) touchscreen monitor, the optional 254 mm (10 in.) touchscreen monitor, or the standard high-resolution 203 mm (8 in.) touchscreen monitor.
✔Not sure how a function works or how to keep the excavator in good working order? Always have the operator's manual on the touchscreen monitor at your fingertips.
✔Locate the tool you require, even if it is obscured by vegetation or debris. Up to a range of 60 metres (200 feet), the excavator's inbuilt Bluetooth reader can find any work tool fitted with Cat asset tracking devices (optional).
✔Cat Stick Steer makes moving the excavator more easier. Instead of using both hands or feet on levers or pedals, simply press a button and travel and turn with one hand.
✔Do you need a little extra help during your shift? Turn on Auto Heavy Lift for an extra 8% of power when you need it, for as long as you need it.

Low Maintenance Fees

✔Maintenance expenses are expected to be up to 25% lower than the 335F. (savings calculated over 12,000 machine hours).
✔Fill and check engine oil on top of the machine with a conveniently situated second dipstick; check engine oil level easily and safely with the new ground-level engine oil dipstick.
✔The in-cab display allows you to keep track of your excavator's filter life and maintenance intervals.
✔The Cat Clean Emissions Module does not require any maintenance.
✔By using Cat original oil and filters and doing standard SOS monitoring, you may double your existing service interval to 1,000 hours, allowing you to do more work.
✔The new air intake filter with precleaner is expected to last up to 1,000 hours, an increase of 100 percent over the old filter.
✔Improved filtering performance, anti-drain valves to keep oil clean when the filter is removed, and a 3,000-hour replacement period – 50 percent longer than prior filter designs – are all features of the new hydraulic oil filter.
✔High-efficiency cooling fans only operate when they're needed; you can programme intervals for them to automatically reverse to keep cores clean while you're working.
✔S•O•S ports are located on the ground level, making maintenance easier and allowing for quick and easy fluid sample extraction for analysis.

Safety Features

✔Lift Assist prevents you from tipping over. You'll know if your load is within the excavator's safe working range restrictions thanks to visual and audio alarms.
✔All servicing locations are accessible from ground level, eliminating the need to climb to the top of the excavator.
✔The conventional ROPS cab complies with ISO 12117-2:2008.
✔Smaller cab pillars, wider windows, and a flat engine hood design provide excellent visibility into the trench, in either swing direction, and behind you.
✔In the lowest position, the conventional hydraulic lockout lever separates all hydraulic and travel operations.
✔When actuated, the ground-level shut-off switch cuts off all fuel to the engine and shuts off the machine.
✔Standard features include a rearview camera and a right-side-view camera. When you upgrade to 360° visibility, you'll be able to see everything surrounding the excavator in one perspective.
✔The front of the machine has a new service platform design that allows for easy, safe, and rapid access to the higher service platform; the service platform stairs are made of anti-skid punch plate to prevent slipping.
✔The use of brightly coloured seatbelts makes it easy to identify correctly used safety restraints.
✔If the hydraulic system loses power unexpectedly, optional boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place.

Net Power - ISO 9249 204 kW
Operating Weight 34900 kg
Maximum Digging Depth 6990 mm

Caterpillar 326 Medium Digger

The Cat 326 Excavator combines high performance with easy-to-use technology to increase operator productivity. These characteristics, combined with a revised cab, longer maintenance intervals, and a fuel-saving power system, result in a low-cost-per-unit-of-production excavator that's ideal for medium to heavy-duty applications.

Performance And Productivity

✔Fuel usage can be reduced by up to 10%. When using Smart mode, you can save an additional 5% without sacrificing productivity.
✔Working on slopes is made easier with a 12 percent increase in swing torque.
✔With standard Cat Technologies, you may increase operating efficiency by up to 45 percent while lowering operator fatigue and operating costs, including as fuel consumption and daily maintenance.
✔C7.1 engine that complies with emission regulations. An after-treatment system that doesn't need to be maintained or shut down.
✔The sophisticated hydraulic system offers the best blend of power and efficiency, as well as the control you need for precision digging.
✔With power modes, you may tailor the excavator to the job at hand; Smart mode will automatically adapt engine and hydraulic power to digging circumstances.
Bucket tips from AdvansysTM improve penetration and cycle times.
✔Tip changes can be completed rapidly using a lug wrench rather than a hammer or special tool, resulting in increased safety and uptime.
✔You can employ a wide range of Cat attachments with the help of auxiliary hydraulic solutions.
✔Available SmartBoom allows the boom to easily glide up and down without the use of pump flow, allowing operators to concentrate on stick and bucket work. Reduced operator stress and fuel consumption are two of the advantages (not available in all regions - consult your local dealer on availability).
✔Don't let the cold get in the way of your work. The excavator's standard high-ambient temperature capability is 52 degrees Celsius (125 degrees Fahrenheit), with a de-rate and cold start capability of –18 degrees Celsius (0 degrees Fahrenheit). A cold start package with a temperature of –32° C (–25° F) is available as an option.

Caterpillar 326 Medium Digger specifications

Superior Technology

✔With the standard Cat Grade with 2D system – which features indicate-only and laser capability – you may increase productivity by up to 45 percent compared to traditional grading.
Standard Grade Assist: With single-lever digging, you can stay on grade quickly and easily.
✔In slope, levelling, fine grading, and trenching applications, choose your desired bucket angle and let Bucket Assist maintain it automatically.
With Boom Assist, you can keep the tracks on the ground when lifting and heavy digging.
✔Swing Assist helps you save time and money by automatically stopping the excavator swing at operator-defined set points in truck loading and trenching applications.
✔On-board weighing device for standard Cat payloads: Without swinging, achieve precise load targets and increase loading efficiency with on-the-go weighing and real-time payload estimates.
✔Payload can now be used in conjunction with VisionLink® to remotely control your production targets, with the option to download to a USB stick.
✔Upgrade to Cat Gradewith Advanced 2D for a second high-resolution 254 mm (10 in) touchscreen monitor to easily create and edit grade designs.
✔Upgrade to Cat Grade with 3D as an option: On a second high-resolution 254 mm (10 in) touchscreen monitor, you may easily create and update designs. To assist the operator in obtaining the desired slope faster and more accurately, use 3D designs and GNSS technology.
✔Add a new Cat Tiltrotator system upgrade with factory-fit joysticks to improve your accuracy and safety. The technology allows a Tiltrotator to work with standard Cat 2D Grade and E-Fence; it displays the tool and engages its SecureLockTM using the regular cab monitor, eliminating the need for an additional monitor.
✔Trimble, Topcon, and Leica radios and base stations are all compatible with Cat Grade systems. Have you already made an investment in a high-quality infrastructure? Trimble, Topcon, and Leica grading systems can all be installed on the machine.

Comfort

✔Select from Comfort, Deluxe, or Premium cabs, all of which feature automatic climate control (consult your local dealer on availability in your region).
✔A mechanical suspension seat is included in the Comfort cab. The Deluxe seat is air-adjustable and heated. The heated and cooled Premium seat adjusts automatically.
✔The Deluxe and Premium cab's tip-up console enhances ingress/egress by about 45 percent.
✔Compared to earlier excavator models, advanced viscous mounts reduce cab vibration by up to 50%.
✔With easy-to-reach controls all in front of you, you can easily manage the excavator.
✔Plenty of in-cab storage is available beneath and behind the seat, as well as in the consoles. There's also a cup holder, document holder, bottle holder, and coat hook.
✔Connect personal gadgets and make hands-free calls using the USB ports and Bluetooth® technologies on the standard radio.

Easy To Operate

✔A push button or the unique Operator ID function can be used to start the engine.
✔Operator ID allows you to programme your power mode and joystick preferences, and the excavator will remember them each time you go to work.
✔Optional Cat Stick Steer makes manoeuvring the excavator considerably easier. Instead of using both hands or feet on levers or pedals, simply press a button and travel and turn with one hand.
✔Use the jog dial control to navigate rapidly on the basic high-resolution 203 mm (8 in) touchscreen monitor, or the optional 254 mm (10 in) touchscreen monitor (available on the Deluxe and Premium cabs only).
✔Not sure how a function works or how to keep the excavator in good working order? Always have the operator's manual on the touchscreen monitor at your fingertips.
✔Locate the tool you require, even if it is obscured by vegetation or debris. Up to a range of 60 metres, the excavator's inbuilt Bluetooth reader can find any work tool fitted with Cat asset tracking devices (200 ft).
✔Auto Dig Boost boosts power by up to 8% for improved bucket penetration, faster cycle times, and higher payloads.
✔Cat Stick Steer makes moving the excavator more easier. Instead of using both hands or feet on levers or pedals, simply press a button and travel and turn with one hand.
✔The Cat PL161 Attachment Locator is a Bluetooth gadget that makes it simple to locate your attachments and other gear. The Cat App on your phone will instantly locate the gadget.

Low Maintenance Fees

✔Expect maintenance costs to be up to 20% lower than the 326F/326D2 (savings calculated over 12,000 machine hours).
✔All daily maintenance should be done on the ground level.
✔Fill and check engine oil on top of the machine with a conveniently situated second dipstick; check engine oil level easily and safely with the new ground-level engine oil dipstick.
✔The in-cab display allows you to keep track of your excavator's filter life and maintenance intervals.
✔The Cat Clean Emissions Module does not require any maintenance.
By using Cat original oil and filters and doing standard SOS monitoring, you may double your existing service interval to 1,000 hours, allowing you to do more work.
✔The new air intake filter with precleaner is expected to last up to 1,000 hours, an increase of 100 percent over the old filter.
✔The new hydraulic oil filter features enhanced filtering, anti-drain valves to keep oil clean when the filter is removed, and a 3,000-hour replacement period, which is 50% longer than prior filter designs.
✔High-efficiency cooling fans only operate when they're needed; you can programme intervals for them to automatically reverse to keep cores clean while you're working.
✔SOS ports are located on the ground level, making maintenance easier and providing for quick and easy fluid sample extraction for analysis.

Safety Features

✔Lift Assist prevents you from tipping over. You'll know if your load is within the excavator's safe working range restrictions thanks to visual and audio alarms.
✔You can reach 100% of the daily maintenance points from ground level, eliminating the need to climb to the top of the excavator.
✔The standard ROPS cab complies with ISO 12117-2:2008.
✔Smaller cab pillars, wider windows, and a flat engine hood design provide excellent visibility into the trench, in either swing direction, and behind you.
✔In the lowest position, the conventional hydraulic lockout lever separates all hydraulic and travel operations.
✔When actuated, the ground-level shut-off switch cuts off all fuel to the engine and shuts off the machine.
✔There's a rearview camera and a right-side-view camera. When you upgrade to 360° visibility, you'll be able to see everything surrounding the excavator in one perspective.
✔The new right service platform design allows for easy, safe, and rapid access to the upper service platform; anti-skid punch plates are used on the service platform steps to prevent skidding.
✔If the hydraulic system loses power unexpectedly, optional boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place.
✔The use of brightly coloured seatbelts makes it easy to identify correctly used safety restraints.

Net Power - ISO 9249 150 kW
Operating Weight 25900 kg
Maximum Digging Depth 6820 mm

Caterpillar 323 Medium Digger

The Cat 323 is a high-performance vehicle that blends speed, efficiency, and power. Standard manufacturing technologies can assist increase operator efficiency by up to 45 percent. When these characteristics are combined with a modern cab, longer maintenance intervals, and lower fuel consumption, maintenance expenses can be lowered by up to 15% and fuel usage by up to 20%.

Performance And Productivity

✔When compared to the 323F excavator, it uses up to 20% less gasoline.
✔With a portfolio of Cat innovations that reduce operator fatigue and operating costs, including as fuel consumption and daily maintenance, you may increase operator efficiency by up to 45 percent.
✔Use power modes to fit the excavator to the job, including the new Smart mode, which automatically adjusts engine and hydraulic power to your digging conditions.
✔The sophisticated hydraulic system provides the ideal blend of power and efficiency, as well as the control you need for your exact digging needs.
✔The electronically controlled turbocharged engine has a transparent after treatment system that requires no operator input or downtime to meet US EPA Tier 4 Final and EU Stage IV emission requirements.
✔You can employ a wide range of Cat attachments with the help of auxiliary hydraulic solutions.
✔Don't let the cold get in the way of your work. The excavator has a normal high ambient temperature capability of 52 degrees Celsius (125 degrees Fahrenheit) and a cold start capability of -18 degrees Celsius (0 degrees Fahrenheit). A cold start package with a temperature of -32o C (-25o F) is provided as an option.

Caterpillar 323 Medium Digger specifications

Superior Technology

✔With the standard Cat GRADE with 2D system – which features indicate-only and laser capability – you may increase productivity by up to 45 percent compared to traditional grading.
Dig with real-time depth, slope, and horizontal distance to grade information.
✔Upgrades to Cat GRADE with Advanced 2D or Cat GRADE with 3D are available for the 2D system.
✔Standard Grade Assist - With single-lever digging, stay on grade quickly and easily.
✔Set your desired bucket angle and let Bucket Assist maintain it automatically in sloping, levelling, fine grading, and trenching applications for simple, accurate, and quick work.
✔With Boom Assist, you can keep your tracks on the ground when lifting and heavy digging. Swing Assist helps you save time and money by automatically stopping the excavator swing at operator-defined set points in truck loading and trenching applications.
Standard Cat PAYLOAD on-board weighing system - With on-the-go weighing and real-time payload predictions without swinging, you can achieve precise load targets and boost loading efficiency.
✔Take the data from the payload with you. The USB connector on the monitor allows you to download your findings from one shift to 30 days of work, allowing you to track your improvement without the need for an internet connection or a VisionLink subscription.
✔Keep track of your daily output, including truck target weights and load/cycle counts.
✔Calibration takes only a few minutes to complete.
✔Payload can be used in conjunction with VisionLink® to help you manage your production targets from afar.
✔Upgrade to Cat GRADE with Advanced 2D for a second high-resolution 10 in (254 mm) touchscreen monitor to easily create and edit grade designs.
✔Optional Cat GRADE with 3D allows you to easily create and edit designs while viewing the front linkage's full range of motion on a second high-resolution 10 in (254 mm) touchscreen monitor.
✔Know the actual location of the excavator in relation to GPS and GLONASS systems.
✔Have you already invested in a 3D system from another company? It's no problem. GRADE with 2D, a standard Cat technology, can easily interface with that system to provide you with the precise results you require.
✔Due to sloping terrain conditions, the equipment automatically compensates for excavator pitch and roll.
✔Through the VisionLink® internet interface, Standard Product LinkTM delivers on-demand location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data, allowing you to increase jobsite efficiency while lowering operating costs.
✔Boost your precision and safety – Upgrade to a new Cat Tiltrotator system with factory-installed joysticks. The technology allows a Tiltrotator to work with standard Cat 2D Grade and E-Fence; it displays the tool and engages its SecureLockTM using the regular cab monitor, eliminating the need for an additional monitor.
✔Trimble, Topcon, and Leica radios and base stations are all compatible with Cat Grade systems. Have you already made an investment in a high-quality infrastructure? Trimble, Topcon, and Leica grading systems can all be installed on the machine.

Designed For Users

✔You have two cab options: Deluxe and Premium, which allow you to select the level of comfort you require.
✔For a more roomy and pleasant setting, enjoy broad space between consoles.
✔Sit in modern, roomy seats that adjust to fit operators of different shapes and sizes (heated and heated/cooled options are available).
✔The tip-up left console makes it easier to get in and out of the cab (in Deluxe and Premium cabs only).
✔With easy-to-reach controls in front of you, you can easily manage the excavator.
✔Throughout your shift, standard automatic climate control keeps you at the perfect temperature.
✔Vibration in the cab is reduced by up to 50% compared to prior excavator models thanks to improved viscous mounts.
✔Plenty of in-cab storage is available beneath the seat, overhead, and in the consoles. There's also a cup holder, document holder, bottle holder, and coat hook.
✔To connect your device and make hands-free calls, the standard radio offers USB connections and Bluetooth® technology.

Built For Long Term Use

✔In cold temperatures, keep hydraulic components protected. In colder conditions, the auto warm-up feature accelerates the warming of hydraulic oil.
✔Three stages of filtration protect the fuel system against fuel pollution.
✔While swinging and travelling, the bottom protecting protects the engine and hydraulic components from damage.
✔The hydraulic tank has been redesigned with a new oval shape to improve stress resistance.
✔The excavator's upper structure transfers loads to the track via the sturdy X-structure lower frame.
✔Hydraulic lines for the travel motor are routed inside the frame to protect them from damage.
✔Mud and debris do not accumulate and damage the rails because of the slanted track frame design.
✔Grease is sealed between the pin and bushing on grease-lubricated tracks to prevent dirt from entering and lowering life.
✔The track rollers may be rebuilt and are sealed to keep dirt and debris out of the internal components, preventing wear.
✔When travelling or working on hills, a bolt-on track guidance guard keeps the track aligned.

Simple To Operate

✔The standard, high-resolution 8 in (203 mm) touchscreen monitor, the optional 10 in (254 m) touchscreen monitor, or the jog dial control can help you navigate rapidly.
✔For advanced grade control, a second 10 in (254 mm) monitor is offered.
✔Use your Bluetooth key fob to enable the pushbutton start feature for a simple keyless start.
✔Adjust the joystick response and set the function of each joystick button to match the excavator's operation to your digging style.
✔Change the joystick pattern from the cab using the monitor. You can pick between two-way and four-way layouts. When you log in with your unique Operator ID, the system will automatically set the pattern based on your preferences.
✔Make sure your hammer isn't overworked. To reduce wear and tear on the attachment and excavator, the auto hammer stop alerts you after 15 seconds of continuous fire and then automatically switches it off after 30 seconds.
✔Not sure how a function works or how to keep the excavator in good working order? Always have the operator's manual on the touchscreen monitor at your fingertips.
✔The Cat PL161 Attachment Locator is a Bluetooth gadget that makes it simple to locate your attachments and other gear. The gadget will be automatically located by the excavator's inbuilt Bluetooth reader or the Cat App on your phone.
✔With the accessible work tool recognition feature, you can save even more time and efforts. A quick shake of the attached tool verifies its identity and ensures that all attachment settings are correct, allowing you to get to work quickly and efficiently.
✔Auto Dig Boost boosts power by up to 8% for improved bucket penetration, faster cycle times, and higher payloads.
✔Cat Stick Steer makes moving the excavator more easier. Instead of using both hands or feet on levers or pedals, simply press a button and travel and turn with one hand.
✔Do you need a little extra help during your shift? Turn on Auto Heavy Lift for an extra 8% of power when you need it, for as long as you need it.

Low Maintenance Cost

✔Over the Cat 323F excavator, extended maintenance intervals cut maintenance expenses by 25%. (15 percent savings calculated over 12,000 machine hours).
✔Cleaning radiators, oil coolers, and condensers is simple with reversing motorised cooling fans.
✔The life of an all-new engine air cleaner with integrated pre-cleaner is twice as long as that of radial seal air cleaners.
✔By using Cat genuine oil and filters and performing standard SOS monitoring, you can double your current service interval to 1,000 hours, allowing you to do more work.
✔Improved filtering performance, anti-drain valves to keep oil clean when the filter is removed, and a 3000 hour replacement interval – 50 percent longer than prior filter designs – are all features of the new hydraulic oil filter.
✔The in-cab monitor can help you keep track of your excavator's filter life and maintenance intervals.
✔The new engine oil dip stick, which is placed on the ground level, allows you to check the engine oil level quickly and safely.
✔SOS ports with expanded sampling intervals are located on the ground level, making maintenance easier and allowing for rapid and easy sample extraction for fluid analysis.

Safety

✔Work safely near traffic or beneath structures with the standard 2D E-fence feature, which stops any portion of the excavator from moving outside of operator-defined set points, preventing dangers and jobsite accidents.
✔You can reach 100% of the daily maintenance points from ground level, eliminating the need to climb on top of the excavator.
✔The standard ROPS cab complies with ISO 12117-2 2008 standards.
Smaller cab pillars, wider windows, and a flat engine hood design provide excellent visibility into the trench, in either swing direction, and behind you.
✔In the lowest position, the conventional hydraulic lockout lever separates all hydraulic and travel operations.
✔When actuated, the ground level shut-off switch cuts off all fuel to the engine and shuts off the machine.
✔A rearview camera is standard, and a 360° visibility camera is optional, providing visibility all around the excavator and allowing the operator to readily observe objects and personnel in a single perspective.
✔The new right-hand service platform design allows for easy, safe, and rapid access to the higher service platform; anti-skid punch plates are used on the service platform steps to minimise slipping. The handrails meet the criteria of ISO 2867.
✔Add Cat Command to your fleet to improve operator safety. The remote control technology keeps you safe from dangerous situations. ✔The new non-line-of-site kit includes a Wi-Fi radio, cameras, and a microphone so you can operate from anywhere.
✔Optional inspection lighting makes service work easier and safer. ✔Lights illuminate the engine, pump, battery, and radiator compartments at the flip of a switch to improve sight.
✔Cat Detect - People Detection aids in the protection of the most precious asset on any jobsite: the workers. When a human comes too close to the excavator, the system employs smart cameras with depth sensors to provide the operator with visual and audible alerts so he or she can take immediate action.

Net Power - ISO 9249 128 kW
Operating Weight 25500 kg
Maximum Digging Depth 6730 mm

Caterpillar's Most Popular Large Diggers

The capabilities of Caterpillar large diggers, as well as the most popular variations, will be explained in this section. The Caterpillar 336 GC, Caterpillar 340, Caterpillar 352 and Caterpillar 374 models have the following specifications.

Caterpillar 336 GC
Large Diggers

The Cat 336 GC provides class-leading comfort while consuming less fuel and requiring less maintenance, ensuring maximum output at the lowest cost per hour.

Caterpillar 336 GC Large Diggers specifications

Fuel Efficiency

✔In similar settings, the excavator is 5% more fuel efficient than the 336F.
✔The C7.1 engine fulfils U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 pollution requirements and can run on biodiesel up to B20.
✔With two power levels, you can match the excavator to the work. ✔Smart mode adapts engine and hydraulic power to digging circumstances, offering maximum power when it's needed and reducing power when it's not to save gasoline.
✔The sophisticated hydraulic system offers the best blend of power and efficiency, as well as the control you need for precision digging.
✔For rapid light-to-medium-load cycle times, valve priority directs hydraulic pressure and flow where you want it.
✔Bucket tips from AdvansysTM improve penetration and cycle times.
✔Tip changes can be completed rapidly using a lug wrench rather than a hammer or special tool, resulting in increased safety and uptime.
✔To do additional work with various Cat attachments, add auxiliary hydraulics.
✔Product LinkTM is included as standard, allowing you to monitor machine health, location, hours, and fuel consumption remotely via the VisionLink internet interface at any time.

Performance

✔Work at elevations of up to 3300 metres (10,830 feet) above sea level.
✔The standard high-ambient temperature capability is 52 degrees Celsius (125 degrees Fahrenheit), with a cold start capability of –18 degrees Celsius (0 degrees Fahrenheit).
✔Automatic hydraulic oil warming allows you to work more quickly in chilly weather while also extending the life of your components.
✔The engine is protected from contaminated diesel fuel by two stages of filtration.
✔Grease between track pins and bushings decreases travel noise and keeps debris out of the undercarriage, extending its life.
✔When travelling and working on slopes, the centre track guiding guard keeps the excavator track aligned.
✔The slanted track frame helps to lessen the danger of track damage by preventing mud and debris accumulation.

Designed For The User

✔The Comfort cab features a spacious seat that can be adjusted to fit operators of different sizes.
✔With easy-to-reach controls all in front of you, you can easily operate the excavator.
✔Throughout your shift, standard automatic climate control keeps you at the ideal temperature.
✔Compared to earlier excavator models, advanced viscous mounts reduce cab vibration by up to 50%.
✔With ample of storage beneath and behind the seat, overhead, and in the consoles, you can keep your belongings organised.
✔To connect to personal devices, use the standard radio's USB ports and Bluetooth technologies.

Easy Operation

✔Use a Bluetooth key fob, smartphone app, or Operator ID passcode to start the engine using a push button.
✔Using Operator ID, programme each joystick button, including power mode, response, and pattern; the machine will remember your settings each time you go to work.
✔Use the jog dial control or the standard high-resolution touchscreen monitor to navigate swiftly.
✔Make sure your hammer isn't overworked. To reduce wear and tear on the attachment and excavator, the auto hammer stop alerts you after 15 seconds of continuous fire and then automatically switches it off after 30 seconds.
✔Not sure how a function works or how to keep the excavator in good working order? Always have the operator's manual on the touchscreen monitor at your fingertips.
✔The Cat PL161 Attachment Locator is a Bluetooth gadget that makes it simple to locate your attachments and other gear. The Cat App on your phone will instantly locate the gadget.

Lower Maintenance Fees

✔Due to longer service intervals, expect up to 20% lower maintenance costs than the 336F. (savings calculated over 12,000 machine hours).
✔Drain fuel system and fuel tank water from the ground level and check hydraulic system oil.
✔The in-cab display allows you to keep track of your excavator's filter life and maintenance intervals.
✔By using Cat original oil and filters and doing standard SOS monitoring, you may double your existing service interval to 1,000 hours, allowing you to do more work.
✔For easier maintenance, oil and gasoline filters are bundled and situated on the right-hand side of the machine.
✔The dust retention capacity of the new air intake filter with pre-cleaner is double that of the previous air intake filter.
✔The new hydraulic oil filter features enhanced filtering, anti-drain valves to keep oil clean when the filter is removed, and a 3,000-hour replacement period, which is 50% longer than prior filter designs.
✔SOS ports are located on the ground level, making maintenance easier and providing for quick and easy fluid sample extraction for analysis.

Safety Features

✔With Operator ID, you can keep your excavator safe. To use the push button starting feature, enter your PIN code on the monitor.
✔The conventional ROPS cab complies with ISO 12117-2:2008.
✔Operators can see which way the travel levers should be activated with the help of a travel direction indicator.
✔When actuated, a ground-level shutoff switch cuts off all fuel to the engine and shuts down the machine.
✔Smaller cab posts and larger windows provide excellent view into the trench, in each swing direction, and behind you.
✔On the servicing platform, serrated stairs and an anti-skid punch plate aid avoid slipping.
✔A rearview camera is included as standard equipment.

Net Power - ISO 9249 204 kW
Operating Weight 36500 kg
Maximum Digging Depth 8230 mm

Caterpillar 340 Large Digger

Caterpillar 340 Large Digger specifications

The Caterpillar 340 can be customised to fulfil your specific requirements, such as mining soil, moving rock, or contouring slopes and ditches over long distances. This 40-ton excavator is packed with technologies and operator advancements to help you get more work done fast and efficiently.

Reduced Fuel Usage

✔Standard Cat innovations that reduce operator fatigue and operating costs, including as fuel consumption and regular maintenance, can increase operating efficiency by up to 45 percent.
✔Get up to 15% better fuel efficiency than the Cat 340F excavator, which means more work per unit of fuel.
✔With three power modes — Power, Smart, and Eco — you can match the excavator to the work. Smart mode adapts engine and hydraulic power to digging circumstances, offering maximum power when it's needed and reducing power when it's not to save gasoline.
✔The sophisticated hydraulic system offers the best blend of power and efficiency, as well as the control you need for precision digging.
✔You can employ a wide range of Cat attachments with the help of auxiliary hydraulic solutions.
✔Don't let the cold get in the way of your work. This excavator can work in temperatures as low as –18° C (0° F) and as high as 52° C (125° F).
✔With increased tip life, self-sharpening AdvansysTM bucket tips boost production and save expenses.

Functional Technology

✔With the standard Cat GRADE with 2D system – which features indicate-only and laser capability – you may increase productivity by up to 45 percent compared to traditional grading.
✔Standard Grade Assist: With single-lever digging, you can stay on grade quickly and easily.
In slope, levelling, fine grading, and trenching applications, choose your desired bucket angle and let Bucket Assist maintain it automatically.
✔With Boom Assist, you can keep the tracks on the ground when lifting and heavy digging.
✔Swing Assist helps you save time and money by automatically stopping the excavator swing at operator-defined set points in truck loading and trenching applications.
✔On-board weighing system for Cat PAYLOAD: Without swinging, achieve precise load targets and boost loading efficiency with on-the-go weighing and real-time payload projections.
✔Payload can be used in conjunction with VisionLink® to help you manage your production targets from afar.
✔Take the data from the payload with you. The monitor's USP port allows you to download results from one shift to 30 days of work, allowing you to track your progress without the need for an internet connection or a VisionLink® subscription.
✔Upgrade to Cat GRADE with Advanced 2D for a second high-resolution 254 mm (10 in) touchscreen monitor to easily create and adjust grade designs.
✔Upgrade to Cat GRADE with 3D as an option: On a second high-resolution 254 mm (10 in) touchscreen monitor, you can easily create and revise designs while also seeing the front linkage's full range of motion.
✔Know the actual location of the excavator in relation to GPS and GLONASS systems. Due to sloping terrain conditions, the equipment automatically compensates for excavator pitch and roll.
✔Remote Troubleshoot connects you to a dealer service technician who can help you solve your problem and get back to work quickly.
✔Remote Flash works around your schedule to keep the software on your machine up to date and running smoothly.
✔The Cat App allows you to keep track of your fleet's location, hours, and maintenance schedules, as well as receive alerts for essential maintenance and request repair from your local Cat dealer.
✔Through the VisionLink online interface, Standard Product LinkTM delivers on-demand location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data, allowing you to increase job site efficiency while lowering operating costs.
✔Using your Cat App-enabled smartphone, the Cat attachment locator may help you discover tools, manage work time, and schedule maintenance and replacement.
✔Have you already invested in a 3D system from another company? It's no problem. GRADE with 2D, a standard Cat technology, can easily interface with that system to provide you with the precise results you require.
✔Trimble, Topcon, and Leica radios and base stations are all compatible with Cat Grade systems. Have you already made an investment in a high-quality infrastructure? Trimble, Topcon, and Leica grading systems can all be installed on the machine.

Designed For The User

✔Select from Deluxe or Premium cabs, both of which feature automatic climate control.
✔Sit in comfortable wide seats that adapt to accommodate operators of different sizes.
✔The Deluxe seat will keep you warm, while the Premium seat will keep you warm and cool.
✔For a more comfortable environment, enjoy the wide separation between consoles.
✔The tip-up left console makes it easier to get in and out of the cab.
Compared to earlier excavator models, advanced viscous mounts reduce cab vibration by up to 50%.
✔With easy-to-reach controls all in front of you, you can easily manage the excavator.
✔Plenty of in-cab storage is available beneath and behind the seat, overhead, and in the consoles. There's also a cup holder, document holder, bottle holder, and coat hook.
✔Connect personal gadgets and make hands-free calls using the USB ports and Bluetooth® technologies on the standard radio.

Simple Operation

✔Use a push button to start the engine, a Bluetooth key fob, or the unique Operator ID function.
✔Operator ID allows you to programme your power mode and joystick preferences, and the excavator will remember them the next time you go to work.
✔Automatic hydraulic oil warming allows you to work more quickly in chilly weather while also extending the life of your components.
✔Use the jog dial control or the standard high-resolution 254 mm (10 in) touchscreen monitor to navigate swiftly.
✔For sophisticated grade control and Cat GRADE with 3D, a second 254 mm (10 in) monitor is offered.
✔Not sure how a function works or how to keep the excavator in good working order? Always have the operator's manual on the touchscreen monitor at your fingertips.
✔The Cat PL161 Attachment Locator is a Bluetooth gadget that makes it simple to locate your attachments and other gear. The gadget will be automatically located by the excavator's inbuilt Bluetooth reader or the Cat App on your phone.
✔With the accessible work tool recognition feature, you can save even more time and efforts. A quick shake of the attached tool verifies its identity and ensures that all attachment settings are correct, allowing you to get to work quickly and efficiently.
✔The auto hammer stop feature protects the attachment and excavator from needless wear and tear. Simply enable it on the monitor, and after 15 seconds of continuous shooting, you and your coworkers will be notified, followed by an automated shutoff at 30 seconds.
✔Auto Dig Boost boosts power by up to 8% for improved bucket penetration, faster cycle times, and higher payloads.
✔Cat Stick Steer makes moving the excavator more easier. Instead of using both hands or feet on levers or pedals, simply press a button and travel and turn with one hand.
✔Do you need a little extra help during your shift? Turn on Auto Heavy Lift for an extra 8% of power when you need it, for as long as you need it.

Maintenance Reduction

✔Due to prolonged and synchronised service intervals and lesser fluid amounts, expect up to 20% lower maintenance costs than the 340F. (savings calculated over 12,000 machine hours).
✔Drain fuel system and fuel tank water from the ground level and check hydraulic system oil.
✔The in-cab display allows you to keep track of your excavator's filter life and maintenance intervals.
✔By using Cat original oil and filters and doing standard SOS monitoring, you may double your existing service interval to 1,000 hours, allowing you to do more work.
✔For easier maintenance, oil and gasoline filters are bundled and situated on the right-hand side of the machine.
✔The dirt retention capacity of the new air intake filter with pre-cleaner is double that of the previous air intake filter.
✔The new hydraulic oil filter features enhanced filtering, anti-drain valves to keep oil clean when the filter is removed, and a 3,000-hour replacement period, which is 50% longer than prior filter designs.
✔Set the interval for the auto reverse feature on the high-efficiency cooling system fan, and it will quickly blow out trash without disturbing your work.
✔SOS ports are located on the ground level, making maintenance easier and providing for quick and easy fluid sample extraction for analysis.

Safety Features

✔Work securely under structures or near traffic with the factory-installed 2D E-fence technology, which prohibits any portion of the excavator from moving outside of operator-defined set points, preventing dangers and job site mishaps.
✔The conventional ROPS cab complies with ISO 12117-2:2008.
✔Operators can see which way the travel levers should be activated with the help of a travel direction indicator.
✔Smaller cab pillars, wider windows, and a flat engine hood design provide excellent visibility into the trench, in either swing direction, and behind you.
✔When actuated, a ground-level shutoff switch cuts off all fuel to the engine and shuts down the machine.
✔A rearview camera is included as standard equipment. When you upgrade to 360° visibility, you'll be able to see everything surrounding the excavator in one perspective.
✔On the servicing platform, serrated stairs and an anti-skid punch plate aid avoid slipping.
✔Add Cat Command to your fleet to improve operator safety. The remote control technology keeps you safe from dangerous situations. ✔The new non-line-of-site kit includes a Wi-Fi radio, cameras, and a microphone so you can operate from anywhere.
✔Optional inspection lighting makes service work easier and safer. Lights illuminate the engine, pump, battery, and radiator compartments at the flip of a switch to improve sight.

Net Power - ISO 9249 232 kW
Operating Weight 39700 kg
Maximum Digging Depth 7270 mm

Caterpillar 352 Large Digger

Caterpillar 352 Large Digger specifications

The Caterpillar 352 provides high performance with easy-to-use innovations that improve operator efficiency, allowing you to maximise productivity while lowering operational expenses.

Increased Fuel Efficiency

✔Standard Cat innovations that reduce operator fatigue and operating costs, including as fuel consumption and regular maintenance, can increase operating efficiency by up to 45 percent.
✔Get up to 10% better fuel efficiency than the Cat 352F excavator, which means more work per unit of fuel.
✔The C13 engine fulfils U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 pollution requirements and can run on biodiesel up to B20.
✔With three power modes – Power, Smart, and Eco – you can match the excavator to the work. Smart mode adapts engine and hydraulic power to digging circumstances, offering maximum power when it's needed and reducing power when it's not to save gasoline.
✔The new high-efficiency hydraulic fan cools the engine on demand to help save gasoline, and the reverse function makes it simple to clean the cores.
✔Self-sharpening AdvansysTM bucket tips boost productivity while lowering costs.
✔You can employ a wide range of Cat attachments with the help of auxiliary hydraulic solutions.
✔Don't let the cold get in the way of your work. This excavator can work in temperatures as low as –18° C (0° F) and as high as 52° C (125° F).

Efficient And Productive

✔With the standard Cat GRADE with 2D system – which features indicate-only and laser capability – you may increase productivity by up to 45 percent compared to traditional grading.
✔Standard Grade Assist: With single-lever digging, you can stay on grade quickly and easily.
✔In slope, levelling, fine grading, and trenching applications, choose your desired bucket angle and let Bucket Assist maintain it automatically.
✔With Boom Assist, you can keep the tracks on the ground when lifting and heavy digging.
✔Swing Assist helps you save time and money by automatically stopping the excavator swing at operator-defined set points in truck loading and trenching applications.
✔On-board weighing system for Cat PAYLOAD: Without swinging, achieve precise load targets and boost loading efficiency with on-the-go weighing and real-time payload projections.
✔Payload can be used in conjunction with VisionLink® to help you manage your production targets from afar.
✔Take the data from the payload with you. The USB connector on the monitor allows you to download your findings from one shift to 30 days of work, allowing you to track your improvement without the need for an internet connection or a VisionLink® subscription.
✔Upgrade to Cat GRADE with Advanced 2D for a second high-resolution 254 mm (10 in) touchscreen monitor to easily create and adjust grade designs.
✔Upgrade to Cat GRADE with 3D as an option: On a second high-resolution 254 mm (10 in) touchscreen monitor, you can easily create and revise designs while also seeing the front linkage's full range of motion.
✔Know the actual location of the excavator in relation to GPS and GLONASS systems. Due to sloping terrain conditions, the equipment automatically compensates for excavator pitch and roll.
✔Remote Troubleshoot connects you to a dealer service technician who can help you solve your problem and get back to work quickly.
✔Remote Flash works around your schedule to keep the software on your machine up to date and running smoothly.
✔The Cat App allows you to keep track of your fleet's location, hours, and maintenance schedules, as well as receive alerts for essential maintenance and request repair from your local Cat dealer.
✔Through the VisionLink online interface, Standard Product LinkTM delivers on-demand location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data, allowing you to increase job site efficiency while lowering operating costs.
✔Using your Cat App-enabled smartphone, the Cat attachment locator may help you discover tools, manage work time, and schedule maintenance and replacement.
✔Have you already invested in a 3D system from another company? It's no problem. GRADE with 2D, a standard Cat technology, can easily interface with that system to provide you with the precise results you require.
✔Trimble, Topcon, and Leica radios and base stations are all compatible with Cat Grade systems. Have you already made an investment in a high-quality infrastructure? Trimble, Topcon, and Leica grading systems can all be installed on the machine.

Comfort

✔Select from Deluxe or Premium cabs, both of which feature automatic climate control.
✔The Deluxe seat will keep you warm, while the Premium seat will keep you warm and cool.
✔The tip-up left console makes it easier to get in and out of the cab.
✔Compared to earlier excavator models, advanced viscous mounts reduce cab vibration by up to 50%.
✔With easy-to-reach controls all in front of you, you can easily manage the excavator.
✔Plenty of in-cab storage is available beneath and behind the seat, overhead, and in the consoles.
✔Connect personal gadgets and make hands-free calls using the USB ports and Bluetooth® technologies on the standard radio.

Operation Is Easy

✔Use a push button to start the engine, a Bluetooth key fob, or the unique Operator ID function.
✔Using Operator ID, programme each joystick button, including power mode, response, and pattern; the machine will remember your settings each time you go to work.
✔Automatic hydraulic oil warming allows you to work more quickly in chilly weather while also extending the life of your components.
✔Use the jog dial control or the high-resolution 254 mm (10 in) touchscreen monitor to navigate swiftly.
For the Cat GRADE with Advanced 2D and Cat GRADE with 3D, a second 254 mm (10 in) monitor is offered.
✔Not sure how a function works or how to keep the excavator in good working order? Always have the operator's manual on the touchscreen monitor at your fingertips.
✔The Cat PL161 Attachment Locator is a Bluetooth gadget that makes it simple to locate your attachments and other gear. The gadget will be automatically located by the excavator's inbuilt Bluetooth reader or the Cat App on your phone.
✔With the accessible work tool recognition feature, you can save even more time and efforts. A quick shake of the attached tool verifies its identity and ensures that all attachment settings are correct, allowing you to get to work quickly and efficiently.
✔The auto hammer stop feature protects the attachment and excavator from needless wear and tear. Simply enable it on the monitor, and after 15 seconds of continuous shooting, you and your coworkers will be notified, followed by an automated shutoff at 30 seconds.
✔Cat Stick Steer makes moving the excavator more easier. Instead of using both hands or feet on levers or pedals, simply press a button and travel and turn with one hand.
✔Do you need a little extra help during your shift? Turn on Auto Heavy Lift for an extra 8% of power when you need it, for as long as you need it.

Reduced Maintenance Cost

✔Due to longer service intervals, expect up to 15% lower maintenance costs than the 352F. (Savings based on 12,000 hours of machine time.)
✔Drain fuel system and fuel tank water from the ground level and check hydraulic system oil.
✔The in-cab display allows you to keep track of your excavator's filter life and maintenance intervals.
✔All fuel filters should be changed at the same time every 1,000 hours. ✔Oil and gasoline filters are grouped together and situated on the machine's right side for convenient servicing.
✔The dust retention capacity of the new air intake filter with pre-cleaner is double that of the previous air intake filter.
✔The new hydraulic oil filter features enhanced filtering, anti-drain valves to keep oil clean when the filter is removed, and a 3,000-hour replacement period, which is 50% longer than prior filter designs.
✔To keep cores free of debris, the new high-efficiency hydraulic fan features an optional automated reverse function, which eliminates the need for any operator contact.
✔SOS ports make maintenance easier and allow for quick and easy fluid sample extraction for analysis.

Built In Safety

✔The excavator is prevented from travelling outside of operator-defined set points by a standard 2D E-Fence that is built in from the factory.
✔Lift Assist prevents tipping by indicating whether or not your load is within the excavator's safe working range.
✔The ISO 12117-2:2008 criteria are met by the conventional ROPS cab.
✔Operators can see which way to engage the trip levers thanks to a travel direction indication.
✔Thanks to lower cab pillars, larger windows, and a flat engine hood design, you'll have tremendous vision into the trench, in each swing direction, and behind you.
✔When activated, a ground-level shutoff switch shuts down the machine and stops all fuel to the engine.
✔Standard cameras are on the back and right sides. When you upgrade to 360° visibility, you'll be able to see everything surrounding the excavator in one place.
✔On the service platform, serrated stairs and an anti-skid punch plate keep you from slipping.

352 LRE

✔Long Reach Excavator designed, approved, and built by Caterpillar for excavation activities.
✔Work on a steep slope; reach out to 19.6 metres (64 feet 5 inches) and dig down to 13.04 metres (42 feet 9 inches) using an 11.5 metre (37' 7") boom and 8.5 metre (27' 9") stick. Precision excavation down to 4.5 metres (14' 9") is standard with Cat Technology, with an underwater solution down to 20 metres (65') available as an option. Excavation buckets can be as large as 1.0 M3 (1.3 yd3).
✔High-capacity heavy duty The sturdy platform for long reach digging is provided by the wide undercarriage with 3.72 m (10' 6") track gauge mechanically stretched and extra counterweight. Variable When extended, the gauge undercarriage adds 330 mm (1' 8") of stability and allows for easier transit between jobsites when retracted.

Net Power - ISO 9249 316 kW
Operating Weight 50100 kg
Maximum Digging Depth 7060 mm

Caterpillar 374 Large Digger

Caterpillar 374 Large Digger specifications

The Caterpillar 374 Next Generation Excavator will benefit your business by providing increased productivity, increased durability, and reduced maintenance.

High Performance

✔With a 36 tonne (40 tonne) capacity, the 374 can load up to 33 trucks per hour.
✔Cycle times are substantially faster than the previous generation due to a 10% increase in swing torque.
✔With the redesigned hydrostatic swing circuit, multifunctioning is smoother and more efficient.
✔Enhanced heavy lift mode boosts system pressure, making it easier to pick and position heavy materials.
✔The booms, sticks, and frames are two times more durable than the previous series, ensuring years of reliable performance in the most demanding conditions.
✔Three operating modes help you match the excavator to the job: Power, Smart, and ECO.
✔Bucket tips from AdvansysTM improve penetration and cycle times. ✔Tip changes can be completed rapidly using a lug wrench rather than a hammer or special tool, resulting in increased safety and uptime.
✔You can employ a wide range of Cat attachments with the help of auxiliary hydraulic solutions.
✔Don't let the cold get in the way of your work. This excavator has a high-ambient capability of 52 degrees Celsius (125 degrees Fahrenheit) and a typical cold start capability of –18 degrees Celsius (-0.4 degrees Fahrenheit).

Efficient And Productive Technology

✔On-board weighing system for Cat PAYLOAD: Without swinging, achieve precise load targets and boost loading efficiency with on-the-go weighing and real-time payload projections.
✔VisionLink® allows you to control production targets from a distance. ✔The USB connector on the monitor allows you to download findings from one shift to 30 days of work, allowing you to track progress without the need for an internet connection or a VisionLink subscription.
✔With the standard Cat GRADE with 2D system – which features indicate-only and laser capability – you can increase productivity over traditional grading.
✔With Advanced 2D or 3D, you can easily upgrade to optional Cat GRADE.
✔Remote Troubleshoot connects you to a dealer service technician who can help you solve your problem and get back to work quickly.
✔Remote Flash works around your schedule to keep the software on your machine up to date and running smoothly.
✔The Cat App allows you to keep track of your fleet's location, hours, and maintenance schedules, as well as receive alerts for essential maintenance and request repair from your local Cat dealer.
✔Through the VisionLink online interface, Standard Product LinkTM delivers on-demand location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data, allowing you to increase jobsite efficiency while lowering operating costs.
✔Trimble, Topcon, and Leica radios and base stations are all compatible with Cat Grade systems. Have you already made an investment in a high-quality infrastructure? Trimble, Topcon, and Leica grading systems can all be installed on the machine.

Easy Operation

✔Using a Bluetooth key fob or the unique Operator ID function, start the engine with a push button.
✔Operator ID can be used to programme each joystick button, including power mode, response, and pattern; the system will remember your settings each time you come to work.
Up to four depth and slope offsets can be programmed, allowing you to simply get to grade without the use of a grade checker – a huge time saver and safety boost on the construction.
✔Avoid overworking your hammer. To reduce wear and tear on the attachment and excavator, the auto hammer stop alerts you after 15 seconds of continuous fire and then switches it off automatically after 30 seconds.
✔Automatic hydraulic oil warming allows you to work more quickly in chilly climates while also extending component life.
✔Use the jog dial control to navigate swiftly on the standard 254 mm (10 in) touchscreen monitor.
✔For the Cat GRADE with Advanced 2D and 3D, a second 254 mm (10 in) monitor is available.
✔The Cat PL161 Attachment Locator is a Bluetooth device that helps you quickly locate your attachments and other gear. The item will be found automatically using the excavator's onboard Bluetooth reader or the Cat App on your phone.
✔With available work tool recognition, you can save time and energy. A brief shake of the attached tool verifies its identity while also ensuring that all attachment settings are right, allowing you to get to work quickly and efficiently.
✔Do you have any questions about how a function operates or how to keep the excavator in good working order? Keep the operator's manual in your touchscreen monitor at all times.
✔With Cat Stick Steer, manoeuvring the excavator is a breeze. Rather than using both hands or feet on levers or pedals, simply press a button and turn with one hand.
✔During your shift, do you need a little extra help? Turn on Auto Heavy Lift for an extra 8% of power when you need it for as long as you need it.

Working In Comfort

✔Select from Deluxe or Premium cabs, both of which feature automatic climate control.
✔The Deluxe heated seat will keep you warm, while the Premium heated and ventilated seat will keep you warm and cool.
✔The tip-up left console makes it easier to get in and out of the cab.
Compared to earlier excavator models, advanced viscous mounts reduce cab vibration by up to 50%.
✔With easy-to-reach controls all in front of you, you can easily manage the excavator.
✔Plenty of in-cab storage is available beneath and behind the seat, overhead, and in the consoles.
✔Connect personal gadgets and make hands-free calls using the USB ports and Bluetooth® technologies on the standard radio.

Less Maintenance

✔Due to reduced hydraulic oil capacity and prolonged and synchronised service intervals, expect up to 20% lower maintenance costs than the 374F.
✔The excavator has auto lube mounting points built in, and an auto lube retrofit kit is available that includes additional hardware for adding a grease pump and line protectors.
✔The in-cab display allows you to keep track of your excavator's filter life and maintenance intervals.
✔Using Cat original oil and filters, as well as doing standard SOS monitoring, will double the existing service interval to 1,000 hours, allowing you to do more work.
✔The dust retention capacity of the advanced air intake filter with pre-cleaner is double that of the preceding air intake filter.
✔The new hydraulic oil filter offers better filtration and a 3,000-hour replacement interval, which is 50% longer than prior filter designs.
✔The new high-efficiency hydraulic fan includes an automatic reverse function that keeps cores clear of debris without requiring any user interaction.
✔SOS ports make maintenance easier and allow for quick and easy fluid sample extraction for analysis.

Superior Safety

✔Standard 2D E-Fence is pre-installed and prohibits the excavator from moving beyond of predetermined locations defined by the operator.
✔Lift Assist prevents tipping by indicating whether your load is within the excavator's safe working range.
✔Cameras for the rear and right-hand sideviews are standard. When you upgrade to 360° visibility, you'll be able to see everything surrounding the excavator in one perspective.
✔The premium 360° lighting kit, which includes 1800 lm lights on the chassis, cab, boom, sides, and rear, allows you to see all around the vehicle.
✔On the servicing platform, serrated stairs and an anti-skid punch plate aid avoid slipping.
✔Operators can see which way the travel levers should be activated with the help of a travel direction indicator.
✔Smaller cab pillars, wider windows, and a flat engine hood design provide excellent visibility into the trench, in either swing direction, and behind you.
✔When actuated, a ground-level shutoff switch cuts off all fuel to the engine and shuts down the machine.

Net Power - ISO 9249 361 kW
Operating Weight 71700 kg
Maximum Digging Depth 8570 mm

Ideal Digger Hire Essex

Tel:01376319184

Connect
