Hitachi's Most Popular Excavators And Attachments

Hitachi's Most Popular Mini Diggers

This section will explain the capabilities of Hitachi mini diggers and the most popular versions. Specifications for the ZX10U-6, ZX19-6,ZX26U-6 and ZX33U-6 models are listed below.

Hitachi ZX10U-6 Mini Digger

The ZX10U-6, Hitachi's smallest mini excavator, is versatile for a wide range of applications, simple to run and maintain, and delivers a powerful performance.

Hitachi ZX10U-6 Mini Digger specifications

Powerful and Compact

The ZX10U-6's short-tail swing radius of 825mm and minimal width of 780mm make it suitable for working in tight locations. With the adjustable undercarriage and blade, this may be extended to 1,000mm. For difficult excavating jobs, it is equipped with a powerful three-cylinder engine.

Manoeuvring With Efficiency

The ZX10U-6 excavator features high and low travel rates, allowing it to move around the job site smoothly and efficiently. Because of its greater stability, the lower roller with the outside flange improves operator comfort while travelling.

Transport Is Simple

The ZX10U-6 may be easily changed to make it easier to carry, with a retractable undercarriage and blade, as well as a foldable TOPS-compliant roll bar. The ignition switch is easily accessible, and the monitor provides quick access to status indicators.

Hitachi ZX10U-6 Mini Digger Specifications

Model Code ZX10U-6
Engine Rated Power (kW) 9.5 kW (ISO14396)
Operating weight (kg) 1 110
Backhoe Bucket ISO Heaped 0.018 - 0.024 m³
Max. digging depth (mm) 1 780
Bucket digging force (kN) ISO 11.7

Hitachi ZX19-6 Mini Digger

The ZX19-6 is extremely adaptable for working in tight places and extremely robust in harsh environments. It is highly productive and efficient in terms of fuel use.

Hitachi ZX19-6 Mini Digger specifications

High productivity

The ZX19-6 is a high-productivity machine with low operating expenses.

Amazingly Versatile

Because of its narrow front minimum turning radius, the ZX19-6 is extremely efficient while working in limited locations. The boom cylinder is mounted on top of the boom, shielding it from damage.

Long Lasting Product

The ZX19-tough 6's features, like the high-strength steel blade and big cylinder guard, offer dependable performance, allowing you to do the work on time and on budget.

Hitachi ZX19-6 Mini Digger Specifications

Model Code ZX19-6
Engine Rated Power (kW) 11.5 kW (ISO14396)
Operating weight (kg) 1920 kg
Backhoe Bucket ISO Heaped 0.02 m³ - 0.05 m³
Max. digging depth (mm) 2 380 mm
Bucket digging force (kN) ISO 16.0 kN

Hitachi
ZX26U-6 Mini Digger

The ZX26U-6 will work effectively and efficiently thanks to its Stage V-compliant engine and the reliable Hitachi hydraulic system. It's easy to move and fits in tight locations on busy construction sites because it's lightweight and tiny.

Hitachi  ZX26U-6 Mini Digger specifications

High productivity

The ZX26U-6 is a high-productivity machine with low operating expenses.

Outstandingly Versatile

The ZX26U-6 is lightweight and portable, making it ideal for moving between jobsites. With a category B+E driver's licence, it may be pulled on a 3.5-tonne trailer with two buckets and a fast hitch.

Long Lasting Product

The ZX26U-6's tough features, like the boom cylinder guard, hose protection, and reinforced boom end bracket, provide dependable performance, allowing you to finish the work on schedule and on budget.

Hitachi ZX26U-6 Mini Digger Specifications

Model Code ZX26U-6
Engine Rated Power (kW) 15.6 kW (ISO14396)
Operating weight (kg) 2 570 kg - 2 720 kg
Backhoe Bucket ISO Heaped 0.07 m³ - 0.08 m³
Max. digging depth (mm) 2 730 mm
Bucket digging force (kN) ISO 22.3 kN

Hitachi
ZX33U-6 Mini Digger

The ZX33U-6 was designed to deliver exceptional performance on every construction site, especially those with limited space. It's fast, powerful, and fuel-efficient, and it's also meant to have lower operating expenses and emit less pollutants.

Hitachi  ZX33U-6 Mini Digger specifications

High productivity

A strong Stage V-compliant engine, rapid cycle time, and an efficient hydraulic system help the ZX33U-6 achieve high levels of productivity on the construction site.

Outstandingly Versatile

The ZX33U-6's tough features, such as reinforced front joints, a reinforced D-frame, and a boom cylinder guard, provide dependable performance, allowing you to do the work on time and on budget.

Long Lasting Product

To drastically minimise fuel consumption, the innovative energy-saving technology integrates ECO mode, auto idle, and isochronous control features. It also cuts down on noise and pollutants.

Hitachi ZX33U-6 Mini Digger Specifications

Model Code ZX19-6
Engine Rated Power (kW) 11.5 kW (ISO14396)
Operating weight (kg) 1920 kg
Backhoe Bucket ISO Heaped 0.02 m³ - 0.05 m³
Max. digging depth (mm) 2 380 mm
Bucket digging force (kN) ISO 16.0 kN

Hitachi's Most Popular Medium Digger

This section will explain the capabilities of Hitachi medium diggers as well as the most popular variants. Specifications for the ZX85US-6, ZX130-5G, ZX160LC-5G and ZX220LC-GI models may be seen below.

Hitachi ZX85US-6 Medium Digger

Performance

On a variety of task locations, the ZX85US-6 maintains excellent levels of productivity, especially where space is limited. It has a lower environmental impact thanks to its revolutionary design and features, which cut fuel consumption and emissions.

Hitachi ZX85US-6 Medium Digger specifications

Efficient productivity

The ZX85US-6 maintains great levels of productivity in a range of job areas, especially where space is constrained. It has a lesser environmental effect due to its ground-breaking design and features that reduce fuel consumption and emissions.

Built To Last

The ZX85US-6's tough features, such as the reinforced front attachment and mainframe, offer dependable performance, allowing you to do the work on time and on budget.

Lower Fuel Price

The ECO mode and auto idle functions lower fuel usage and noise levels dramatically.

Model Code ZX85US-6
Engine Rated Power (kW) 42.4 kW (ISO14396)
Operating weight (kg) 8 140 - 8 930 kg
Backhoe Bucket ISO Heaped 0.28 m³
Max. digging depth (mm) 4 110 – 4 610
Bucket digging force (kN) ISO 55 kN

Hitachi ZX130-5G Medium Digger

Long-lasting and dependable

The ZX130-5G is powered by a strong and dependable engine that has proven itself on difficult job sites all over the world. Its front attachment is also tough, thanks to a number of reinforced and strengthened components that decrease wear and jolts. We also reinforced the upper structure frame and stiffened the undercarriage with bigger brackets, for example.

The air-conditioned cab's sturdy design ensures a safe and comfortable working environment. It has plenty of legroom and easy access, as well as a control panel and levers that are easily accessible.

Hitachi ZX130-5G Medium Digger specifications

Low Fuel Consumption

You can do more with less with the ZX130-5G. We have reduced its fuel consumption by 8%, yet increased productivity levels by 4% (compared to the previous ZX120 model). This is thanks to our HIOS III hydraulic and engine control systems, which also help to reduce CO2 emissions. Even further reductions in fuel consumption can achieved with the new ECO mode (14% less fuel compared to the PWR mode).

The productivity of the ZX130-5G has been improved by a rapid arm roll-in speed, a high arm speed when the boom is lowered, and a power boost function that gives 5% greater digging force when required. The traction force has also been increased by 15% for travelling on rough terrain.

Specification

Model Code ZX130-5G / ZX130K-5G
Engine Rated Power (kW) 66 kW (88.5 HP)
Operating weight (kg) 12 200 - 13 200 kg
Backhoe Bucket ISO Heaped 0.19 - 0.59 m³
Max. digging depth (mm) 5 1200 - 6 030 mm
Bucket digging force (kN) ISO 104 kN

Hitachi ZX160LC-5G
Medium Digger

Safe and dependable

The air-conditioned cab's sturdy design ensures a safe and comfortable working environment. The ZX160LC-5G provides ample legroom and simple access, with the control panel and levers conveniently located near the adjustable seat. A bilingual and versatile monitor, as well as a rear-view camera, are included.

This Hitachi medium excavator, with its strong engine and effective cooling system, can work reliably on difficult construction sites all around the world. Its front attachment is also tough, thanks to a number of reinforced and strengthened components that decrease wear and jolts. The undercarriage has been reinforced, for example, with thicker brackets, and the upper structure frame has been reinforced.

Hitachi ZX160LC-5G Medium Digger specifications

Great Productivity

The ZX160LC-5speed G's and productivity have been improved thanks to our HIOS III hydraulic system. When needed, the power boost feature provides a 10% increase in digging force, and the auto power lift mode increases lifting power by 10% for heavy loads such as concrete pipes.

Lower fuel use goes hand in hand with increased production. In comparison to the ZX160-3 model, we have cut fuel consumption by 4%, and by 16% in ECO mode (compared to the PWR mode). The ZX160LC-5G is also simple to maintain, with features that are conveniently situated for quick inspection from ground level. Handrails and slip-resistant plates guarantee that maintenance tasks are completed safely.

Specification

Model Code ZX160LC-5G
Engine Rated Power (kW) 90.2 kW (121 HP)
Operating weight (kg) 16600 - 17700 kg
Backhoe Bucket ISO Heaped 0.60 - 0.82 m3
Max. digging depth (mm) 5 620 - 6 490 mm
Bucket digging force (kN) ISO 122 kN

Hitachi ZX220LC-GI
Medium Digger

A ZAXIS hallmark

Hydraulic technology that is unrivalled in the industry, and performance that no one can match. The New ZAXIS-GI Excavators offer dependable solutions, such as remarkable fuel economy, quick front motions, and simple operation.

The enhanced hydraulic system and engine, which are the result of Hitachi's technological acumen and expertise, are another highlight of the new Zaxis-GI series.

Hitachi ZX220LC-GI Medium Digger specifications

Swift Front Movements - HIOS III Hydraulics

Thanks to the HIOS III hydraulic system, which was created using industry-leading hydraulic technologies and a wealth of experience, operating speed rises without affecting fuel consumption.

Actuators work swiftly thanks to the weight of the boom, and they don't require a regenerative circuit or pressurised oil.

Specification

Model Code ZX220LC-GI
Engine Rated Power (kW) 125 kW (170 ch)
Operating weight (kg) 21 200 - 21 400 kg
Backhoe Bucket ISO Heaped 0,90 - 1,00 m³

Hitachi's Most Popular Large Diggers

This section will explain the capabilities of Hitachi large diggers and the most popular versions. Specifications for the ZX470LCH-5G, EX1200-7, EX8000-6 and EX3600-6 models are listed below.

Hitachi ZX470LCH-5G Large Diggers

In West Africa, Xara Developers is building a coastal defence revetment to safeguard local residents and resources from tidal harm. The 5.5-meter-high, 2-kilometer-long coastal defence project is located at Aboadze, Ghana, on the edge of the Gulf of Guinea.

One of three Hitachi excavators utilised for earthmoving, moving huge boulders, keeping beach areas clear, and building small rock stockpiles is a ZX470LCH-5G. "The Hitachi machines operate very well, and we have very little downtime," explains project manager Niels Elsnab. They're also long-lasting, which is important for this kind of task."

Hitachi ZX470LCH-5G Large Diggers specifications

Sophisticated Hydraulics

The ZX470LCH-5HIOS G's IIIB hydraulic system reduces fuel consumption by 8% while also lowering CO2 emissions (compared to the previous model). It also boosts the excavator's operating speed by allowing for quick front motions.

The ZX470LCH-5performance G's has been improved by increasing swing torque, boom lifting capacity, traction, arm digging, and bucket digging forces. Switching attachments is also a breeze, thanks to the multifunctional monitor in the cab, which allows you to shift over valves, adjust extra circuit flow, and verify settings.

Simple Maintenance

The ZX470LCH-5G has been made easier to service and check thanks to ground-level access to several parts and components. The machine's upper structure is accessible by a broad sidewalk on the left side of the cab. Safety is enhanced by handrails and slip-resistant plates.

The ZX470LCH-5enormous G's fuel tank allows it to work continuously for long periods of time. Long service intervals are ensured by the huge excavator's filters and oil, lowering your maintenance expenses.

Model Code ZX470LCH-5G
Engine Rated Power (kW) 235 kW (315 HP)
Operating weight (kg) 47 800 – 48 300 kg
Backhoe Bucket ISO Heaped 1.90 – 2.5 m³
Max. digging depth (mm) 5,880 – 7,860
Bucket digging force (kN) ISO 295

Hitachi EX1200-7 Large Diggers

Hitachi EX1200-7 Large Diggers specifications

The EX-7 series from Hitachi is the culmination of more than a century of group company expertise, combining intelligence, safety, and ultimate efficiency.

The Hitachi EX1200-7 is a one-of-a-kind excavator that can handle a wide range of tasks. On the surface, the machine appears to be a stunningly simple, operator-friendly equipment with sophisticated and intricate engineering at its core.

The latest energy-saving features from Hitachi provide a long-term solution for the mining industry.

To meet regulatory standards, the EX1200-7 has electronically regulated hydraulic pumps, an optimised cooling package, strengthened hydraulic circuits, and a variety of emission settings.

The end result is a machine that is both ecologically mindful and high-performing.

Specifications

Model Code EX1200-7
Engine Rated Power (kW) 567.0 kW (760 HP)
Operating weight (kg) 117 000 kg
Backhoe Bucket ISO Heaped 7.00 m³
Max. digging depth (mm) 7 960 - 9 260 mm
Bucket digging force (kN) ISO 569.0

Hitachi EX8000-6 Large Diggers

Hitachi EX8000-6 Large Diggers specifications

Highly Effective and Efficient

Highly effective and efficient
The EX8000-6 excavator is our largest and most productive excavator. The power comes from two Cummins diesel engines, and our computer-aided Engine-Pump Control ensures optimal operational efficiency. Between unloading and excavation, the flow speed can be increased to improve efficiency even more.

The EX8000-6 uses three passes to load a Hitachi EH4000ACII dump truck equipped with a 40m3 loading shovel or 43m3 backhoe bucket. It can also load our largest dump truck, the EH5000AC-3, in four to five passes.

Engineered To Work 24 Hours A Day

Our huge excavators have durability and dependability built into their DNA. The EX8000-6 features a sturdy bottom roller, track links, and drive tumblers, as well as a durable rigid box design and solid cast track frame.

It also has a number of easy-to-maintain features to ensure that it can run dependably 24 hours a day, seven days a week, even in remote places. Thanks to a big central service area and folding stairs with wide steps, many components are easily accessible. To cut down on maintenance time, parts such as bucket teeth and shrouds can be easily replaced.

Specifications

Model Code EX8000-6
Engine Rated Power (kW) 2x 1 450 kW (2x 1 940 HP)
Operating weight (kg) 811 000 kg
Backhoe Bucket ISO Heaped 38.0 - 43 m³
Max. digging depth (mm) 13 800 mm
Bucket digging force (kN) ISO 2 230.0

Hitachi EX3600-6 Large Diggers

Hitachi EX3600-6 Large Diggers specifications

Perfect For Grand Scale Production

Our EX3600-6 excavator has a powerful engine and is designed for severe excavation work in the world's most difficult quarries and mines.

The large-capacity bucket is designed to make operations more efficient. A Hitachi EH3500AC-3 dump truck can be loaded in six passes with a 22m3 backhoe bucket or a 21m3 loading shovel bucket. Both alternatives provide a lot of breakout and digging power.

Excellent visibility from the cab also boosts productivity. Four (optional) cameras can be used to monitor the surrounding region, minimising blind spots on the construction site. All controls are easily accessible, resulting in increased operational efficiency.

Easy To Maintain

We built the EX3600-6 with a number of easy-to-maintain features to assure dependable performance in some of the world's most remote areas, 24 hours a day, seven days a week. Many components are easily accessible and replaceable. A path around the counterweight allows for quick and safe access to crucial sections for inspection and maintenance. An automatic lubrication system reduces the need for manual lubrication.

The EX3600-6 combines a sturdy rigid box construction and solid cast track frame for added durability. The excavator includes high-mounted compact travel motors and an optional travel motor guard to avoid damage from rocks. Service intervals have been extended thanks to rugged track links with additional roller guides.

Specifications

Model Code EX3600-6
Engine Rated Power (kW) 1 450 kW (1 944 HP)
Operating weight (kg) 361 000 kg
Backhoe Bucket ISO Heaped 21.0 - 23.0 m³
Max. digging depth (mm) 8 580
Bucket digging force (kN) ISO 1 050.0

Hitachi's Most Popular Wheeled Diggers

This section will explain the capabilities of Hitachi’s wheeled diggers as well as the most popular variants. Specifications for the ZX170W-5A, ZX190W-5A, ZX210W-5A models may be seen below.

Hitachi ZX170W-5A Wheeled Digger

The new ZX170W-5A offers dependable solutions, such as excellent fuel economy, quick front movements, and simple operation. Hitachi's technological prowess and skills, such as the optimised hydraulic system and engine, are also on display.

Excellent quality, low fuel consumption, and high durability are all major qualities of the new ZX170W-5A, all of which contribute to reduced operating expenses. Customers' aspirations and ambitions will be realised, and your colourful future will be pioneered, thanks to the new ZX170W-5A, which is powered by comprehensive evolution.

Hitachi ZX170W-5A Wheeled Digger specifications

Specifications

Model Code ZX170W-5A
Engine Rated Power (kW) 113 kW (153 HP)
Operating weight (kg) 16 800 - 18 300 kg
Backhoe Bucket ISO Heaped 0.60 - 0.70 m3

Hitachi ZX190W-5A Wheeled Digger

The new ZX190W-5A offers dependable solutions, such as excellent fuel economy, quick front movements, and simple operation. Hitachi's technological prowess and skills, such as the optimised hydraulic system and engine, are also on display.

Excellent quality, low fuel consumption, and high durability are all major qualities of the new ZX190W-5A, all of which contribute to reduced operating expenses.

The new ZX190W-5A, which has undergone extensive modification, will bring customers' aspirations and desires to life and pave the way for your colourful future.

Hitachi ZX190W-5A Wheeled Digger specifications

Specifications

Model Code ZX190W-5A
Engine Rated Power (kW) 113 kW (154 HP)
Operating weight (kg) 18 100 - 19 800 kg
Backhoe Bucket ISO Heaped 0.70 - 0.80 m3

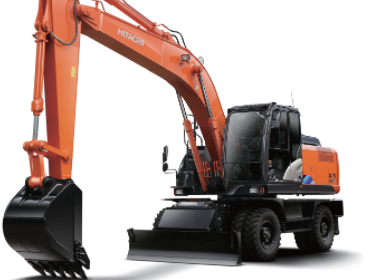

Hitachi ZX210W-5A Wheeled Digger

The new ZX210W-5A offers dependable solutions, such as excellent fuel economy, quick front movements, and simple operation. Hitachi's technological prowess and skills, such as the optimised hydraulic system and engine, are also on display.

Excellent quality, low fuel consumption, and high durability are all major attributes of the new ZX210W-5A, all of which contribute to reduced operating expenses.

The new ZX210W-5A, which has undergone extensive evolution, will bring consumers' aspirations and desires to life and pave the way for a brighter future.

Hitachi ZX210W-5A Wheeled Digger specifications

Specifications

Model Code ZX210W-5A
Engine Rated Power (kW) 113 kW (154 HP)
Operating weight (kg) 20 100 - 21 600 kg
Backhoe Bucket ISO Heaped 0.80 - 0.91 m3
